151-03254

Active

HELLERMANNTYTON

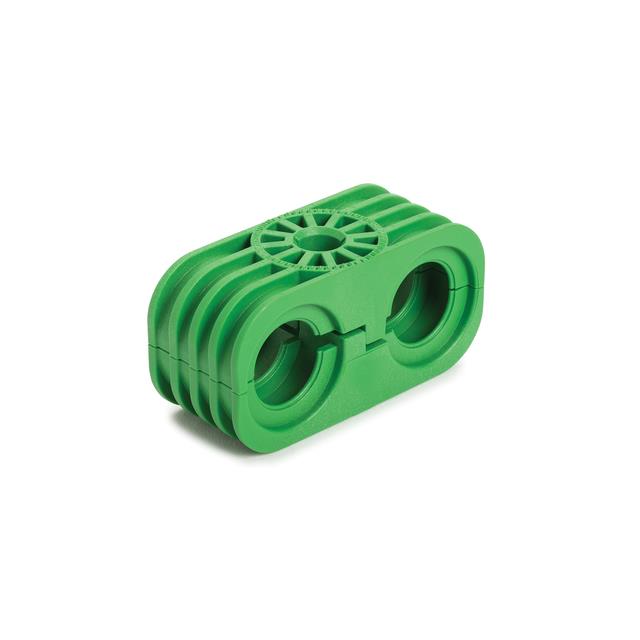

HC CLAMP BUNDLE SEPARATOR

Search across all available documentation for this part.

Active

HELLERMANNTYTON

HC CLAMP BUNDLE SEPARATOR

Technical Specifications

Parameters and characteristics for this part

Specification	151-03254

Accessory Type	Separator
Features	2 Holes
Material	Polyamide (PA66), Nylon 6/6, Glass Filled

Part	Features	Width [y]	Width [y]	Height [z]	Height [z]	Mounting Type	Material Flammability Rating	Material	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Color	Type	Accessory Type	Length	Length	Panel Hole Size	Panel Hole Size	Screw Size	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Type Attributes	Type Attributes	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Height [z]	Length [x]	Length [x]
HELLERMANNTYTON 151-03404	Heat Stabilized Impact Resistant UV Resistant	0.394 in	10 mm	12.4 mm	0.488 "	Clip On Edge Mount	UL94 HB	Polyamide (PA66) Nylon 6/6	0.99 mm	0.118 in	0.039 in	3 mm	Black	Bundling Clip
HELLERMANNTYTON 151-03253	2 Holes							Polyamide (PA66) Nylon 6/6 Glass Filled							Separator
HELLERMANNTYTON 151-03254	2 Holes							Polyamide (PA66) Nylon 6/6 Glass Filled							Separator
HELLERMANNTYTON 151-03203	Heat Stabilized Impact Modified UV Stabilized	1.37 "	34.8 mm			Fastener	UL94 HB	Nylon 6/6 Polyamide (PA66) Steel					Black	Clamp P-Type		5.82 in	147.83 mm	0.256 in	6.5 mm	M6	62.99 mm	80.01 mm	3.15 in	2.48 in	Ratchet Ribbed	180 °	3.46 in	87.89 mm
HELLERMANNTYTON 151-03403	Heat Stabilized Impact Resistant UV Resistant	0.394 in	10 mm	0.512 in		Clip On Edge Mount	UL94 HB	Polyamide (PA66) Nylon 6/6	0.99 mm	0.118 in	0.039 in	3 mm	Black	Bundling Clip												90 °			13 mm	1.831 "	46.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.99

General part information

Separator For Convoluted Loom Tubing
