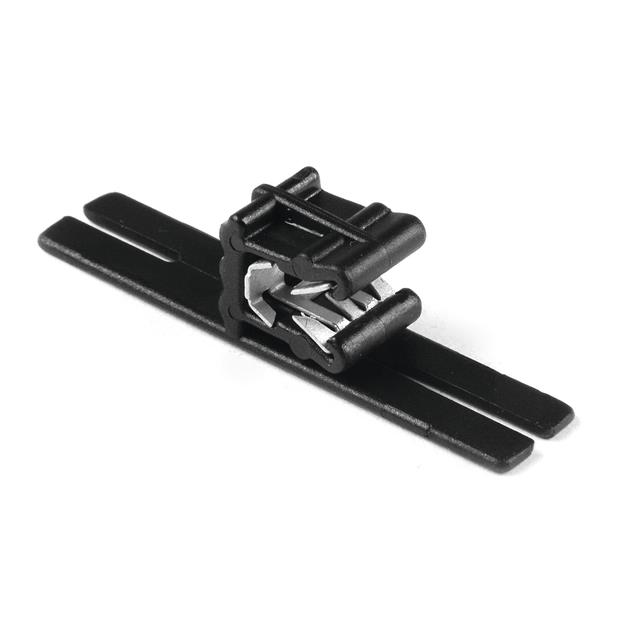

151-03403

Active

HELLERMANNTYTON

CBL CLIP BUNDLING EDGE MNT CLIP

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP BUNDLING EDGE MNT CLIP

Technical Specifications

Parameters and characteristics for this part

Specification	151-03403

Color	Black
Features	UV Resistant, Heat Stabilized, Impact Resistant
Height [z]	0.512 in
Height [z]	13 mm
Length [x]	1.831 "
Length [x]	46.5 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 HB
Mounting Type	Edge Mount, Clip On
Panel Thickness [Max]	0.118 in
Panel Thickness [Max]	3 mm
Panel Thickness [Min]	0.99 mm
Panel Thickness [Min]	0.039 in
Type	Bundling, Clip
Type Attributes	90 °
Width [y]	0.394 in
Width [y]	10 mm

Part	Features	Width [y]	Width [y]	Height [z]	Height [z]	Mounting Type	Material Flammability Rating	Material	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Color	Type	Accessory Type	Length	Length	Panel Hole Size	Panel Hole Size	Screw Size	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Type Attributes	Type Attributes	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Height [z]	Length [x]	Length [x]
HELLERMANNTYTON 151-03404	Heat Stabilized Impact Resistant UV Resistant	0.394 in	10 mm	12.4 mm	0.488 "	Clip On Edge Mount	UL94 HB	Polyamide (PA66) Nylon 6/6	0.99 mm	0.118 in	0.039 in	3 mm	Black	Bundling Clip
HELLERMANNTYTON 151-03253	2 Holes							Polyamide (PA66) Nylon 6/6 Glass Filled							Separator
HELLERMANNTYTON 151-03254	2 Holes							Polyamide (PA66) Nylon 6/6 Glass Filled							Separator
HELLERMANNTYTON 151-03203	Heat Stabilized Impact Modified UV Stabilized	1.37 "	34.8 mm			Fastener	UL94 HB	Nylon 6/6 Polyamide (PA66) Steel					Black	Clamp P-Type		5.82 in	147.83 mm	0.256 in	6.5 mm	M6	62.99 mm	80.01 mm	3.15 in	2.48 in	Ratchet Ribbed	180 °	3.46 in	87.89 mm
HELLERMANNTYTON 151-03403	Heat Stabilized Impact Resistant UV Resistant	0.394 in	10 mm	0.512 in		Clip On Edge Mount	UL94 HB	Polyamide (PA66) Nylon 6/6	0.99 mm	0.118 in	0.039 in	3 mm	Black	Bundling Clip												90 °			13 mm	1.831 "	46.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	500	$ 0.88
