151-03203

Active

HELLERMANNTYTON

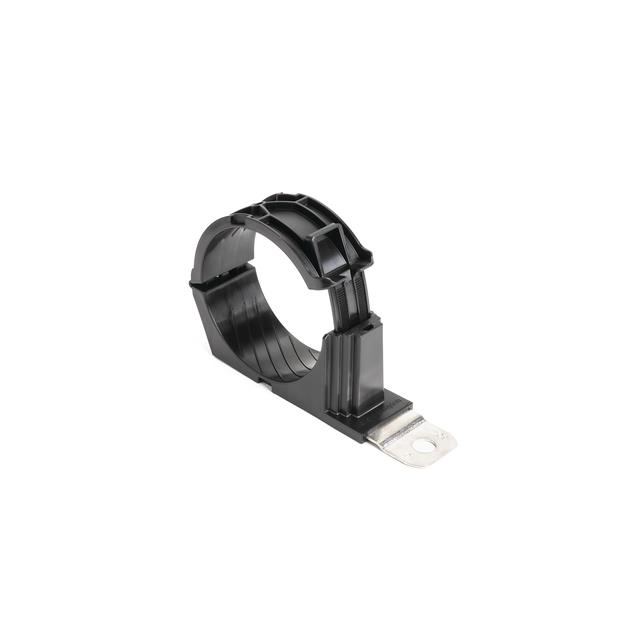

RATCHET P-CLAMP, 2.48" - 3.15" B

Search across all available documentation for this part.

Active

HELLERMANNTYTON

RATCHET P-CLAMP, 2.48" - 3.15" B

Technical Specifications

Parameters and characteristics for this part

Specification	151-03203

Bundle Center to Mounting Center [x]	3.46 in
Bundle Center to Mounting Center [x]	87.89 mm
Color	Black
Features	Impact Modified, Heat Stabilized, UV Stabilized
Length	5.82 in
Length	147.83 mm
Material	Polyamide (PA66), Steel, Nylon 6/6
Material Flammability Rating	UL94 HB
Mounting Type	Fastener
Opening Size [Max] [custom]	80.01 mm
Opening Size [Max] [custom]	3.15 in
Opening Size [Min] [custom]	62.99 mm
Opening Size [Min] [custom]	2.48 in
Panel Hole Size	0.256 in
Panel Hole Size	6.5 mm
Screw Size	M6
Type	Clamp, P-Type
Type Attributes	Ribbed, Ratchet
Type Attributes	180 °
Width [y]	1.37 "
Width [y]	34.8 mm

Part	Features	Width [y]	Width [y]	Height [z]	Height [z]	Mounting Type	Material Flammability Rating	Material	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Color	Type	Accessory Type	Length	Length	Panel Hole Size	Panel Hole Size	Screw Size	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Type Attributes	Type Attributes	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Height [z]	Length [x]	Length [x]
HELLERMANNTYTON 151-03404	Heat Stabilized Impact Resistant UV Resistant	0.394 in	10 mm	12.4 mm	0.488 "	Clip On Edge Mount	UL94 HB	Polyamide (PA66) Nylon 6/6	0.99 mm	0.118 in	0.039 in	3 mm	Black	Bundling Clip
HELLERMANNTYTON 151-03253	2 Holes							Polyamide (PA66) Nylon 6/6 Glass Filled							Separator
HELLERMANNTYTON 151-03254	2 Holes							Polyamide (PA66) Nylon 6/6 Glass Filled							Separator
HELLERMANNTYTON 151-03203	Heat Stabilized Impact Modified UV Stabilized	1.37 "	34.8 mm			Fastener	UL94 HB	Nylon 6/6 Polyamide (PA66) Steel					Black	Clamp P-Type		5.82 in	147.83 mm	0.256 in	6.5 mm	M6	62.99 mm	80.01 mm	3.15 in	2.48 in	Ratchet Ribbed	180 °	3.46 in	87.89 mm
HELLERMANNTYTON 151-03403	Heat Stabilized Impact Resistant UV Resistant	0.394 in	10 mm	0.512 in		Clip On Edge Mount	UL94 HB	Polyamide (PA66) Nylon 6/6	0.99 mm	0.118 in	0.039 in	3 mm	Black	Bundling Clip												90 °			13 mm	1.831 "	46.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clamp, P-Type Black Fastener 2.480" ~ 3.150" (62.99mm ~ 80.01mm)
