0190350002
ActiveMolex
CONN TERM PIN 18-22AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
0190350002
ActiveMolex
CONN TERM PIN 18-22AWG CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0190350002 |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Non-Mating End Insulated |
| Insulation Diameter [diameter] | 3.56 mm |
| Insulation Diameter [diameter] | 0.14 in |
| Length - Barrel [x] | 0.5 in |
| Length - Barrel [x] | 12.7 mm |
| Length - Overall [x] | 26.57 mm |
| Length - Overall [x] | 1.046 in |
| Material - Insulation | Nylon, Polyamide (PA) |
| Terminal Type | Pin (Plug), Male |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
019035 Series
| Part | Termination | Diameter - Barrel [diameter] | Diameter - Barrel [diameter] | Material - Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Contact Material | Color | Terminal Type | Insulation | Length - Barrel | Length - Barrel | Length - Overall [x] | Length - Overall [x] | Length - Barrel [x] | Length - Barrel [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Crimp | 3.96 mm | 0.156 in | Nylon Polyamide (PA) | 22 AWG | 17.5 AWG | Tin | 3.56 mm | 0.14 in | Copper | Red | Male Pin (Plug) | Non-Mating End Insulated | 0.44 in | 11.18 mm | 25.04 mm | 0.986 " | ||
Molex | Crimp | Nylon Polyamide (PA) | Tin | Copper | Blue | Male Pin (Plug) | Non-Mating End Insulated | 26.57 mm | 1.046 in | ||||||||||
Molex | Crimp | 3.96 mm | 0.156 in | Nylon Polyamide (PA) | Tin | Copper | Blue | Male Pin (Plug) | Non-Mating End Insulated | 25.04 mm | 0.986 " | ||||||||
Molex | Crimp | Nylon Polyamide (PA) | Tin | Copper | Blue | Male Pin (Plug) | Non-Mating End Insulated | 26.57 mm | 1.046 in | ||||||||||
Molex | Crimp | Nylon Polyamide (PA) | 22 AWG | 17.5 AWG | Tin | 3.56 mm | 0.14 in | Copper | Red | Male Pin (Plug) | Non-Mating End Insulated | 26.57 mm | 1.046 in | 0.5 in | 12.7 mm | ||||
Molex | Crimp | Nylon Polyamide (PA) | 22 AWG | 17.5 AWG | Tin | 3.56 mm | 0.14 in | Copper | Red | Male Pin (Plug) | Non-Mating End Insulated | 26.57 mm | 1.046 in | 0.5 in | 12.7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.76 | |
| 10 | $ 0.63 | |||
| 100 | $ 0.53 | |||
| Tape & Reel (TR) | 1000 | $ 0.42 | ||
| 2000 | $ 0.40 | |||
| 3000 | $ 0.38 | |||
| 5000 | $ 0.37 | |||
| 10000 | $ 0.35 | |||
| 25000 | $ 0.34 | |||
Description
General part information
019035 Series

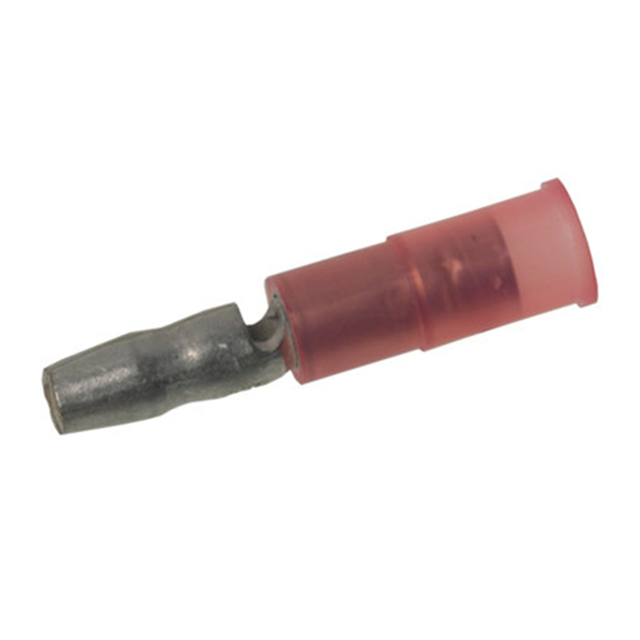

Terminal Connector Male, Pin (Plug) 18-22 AWG Crimp Tin
Documents
Technical documentation and resources
No documents available
