0190350008

Active

Molex

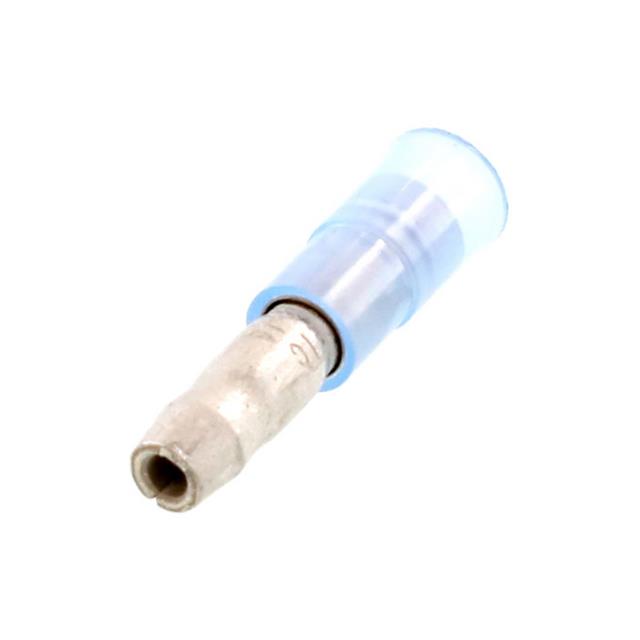

CONN TERM PIN 14-16AWG CRIMP

Search across all available documentation for this part.

Active

Molex

CONN TERM PIN 14-16AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Material - Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Material	Color	Terminal Type	Insulation	Length - Barrel	Length - Barrel	Length - Overall [x]	Length - Overall [x]	Length - Barrel [x]	Length - Barrel [x]
Molex 0190350003	Crimp	3.96 mm	0.156 in	Nylon Polyamide (PA)	22 AWG	17.5 AWG	Tin	3.56 mm	0.14 in	Copper	Red	Male Pin (Plug)	Non-Mating End Insulated	0.44 in	11.18 mm	25.04 mm	0.986 "
Molex 0190350008	Crimp			Nylon Polyamide (PA)			Tin			Copper	Blue	Male Pin (Plug)	Non-Mating End Insulated			26.57 mm	1.046 in
Molex 0190350012	Crimp	3.96 mm	0.156 in	Nylon Polyamide (PA)			Tin			Copper	Blue	Male Pin (Plug)	Non-Mating End Insulated			25.04 mm	0.986 "
Molex 0190350005	Crimp			Nylon Polyamide (PA)			Tin			Copper	Blue	Male Pin (Plug)	Non-Mating End Insulated			26.57 mm	1.046 in
Molex 0190350002	Crimp			Nylon Polyamide (PA)	22 AWG	17.5 AWG	Tin	3.56 mm	0.14 in	Copper	Red	Male Pin (Plug)	Non-Mating End Insulated			26.57 mm	1.046 in	0.5 in	12.7 mm
Molex 0190350001	Crimp			Nylon Polyamide (PA)	22 AWG	17.5 AWG	Tin	3.56 mm	0.14 in	Copper	Red	Male Pin (Plug)	Non-Mating End Insulated			26.57 mm	1.046 in	0.5 in	12.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Connector Male, Pin (Plug) 14-16 AWG Crimp Tin
