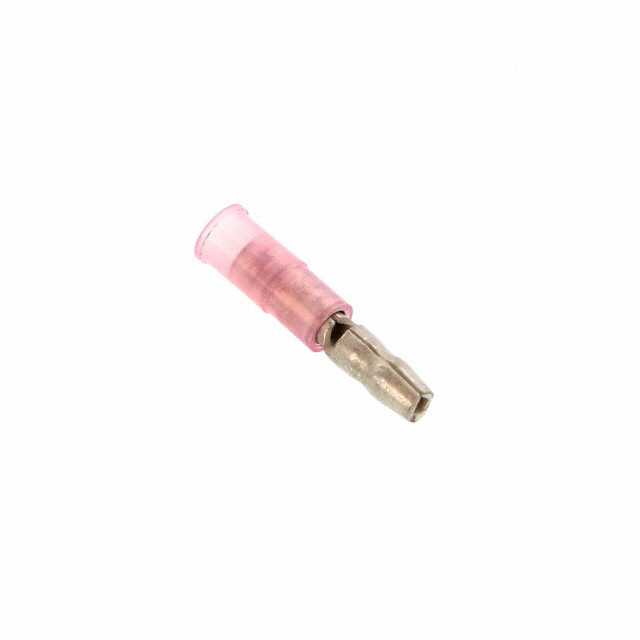

0190350003
ActiveMolex
CONN TERM PIN 18-22AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
0190350003
ActiveMolex
CONN TERM PIN 18-22AWG CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0190350003 |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Diameter - Barrel [diameter] | 3.96 mm |
| Diameter - Barrel [diameter] | 0.156 in |
| Insulation | Non-Mating End Insulated |
| Insulation Diameter [diameter] | 3.56 mm |
| Insulation Diameter [diameter] | 0.14 in |
| Length - Barrel | 0.44 in |
| Length - Barrel | 11.18 mm |
| Length - Overall [x] | 25.04 mm |
| Length - Overall [x] | 0.986 " |
| Material - Insulation | Nylon, Polyamide (PA) |
| Terminal Type | Pin (Plug), Male |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.41 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.27 | |||
| 1000 | $ 0.22 | |||
Description
General part information
019035 Series
Terminal Connector Male, Pin (Plug) 18-22 AWG Crimp Tin
Documents
Technical documentation and resources
No documents available
