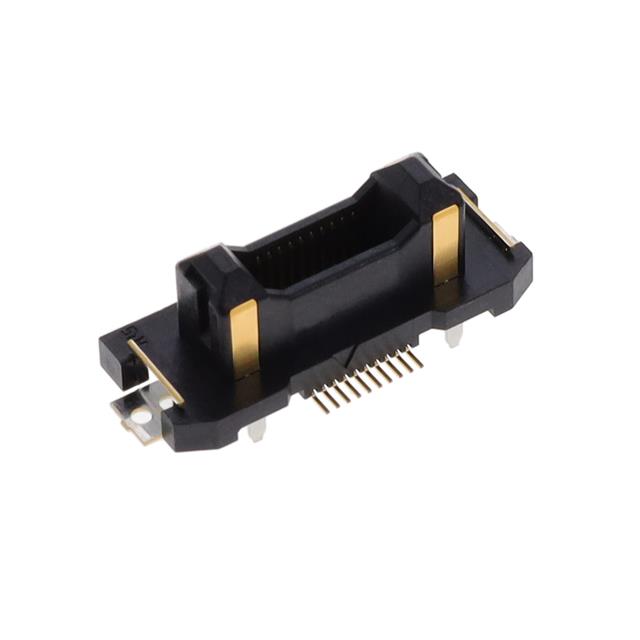

FX23L-20P-0.5SV8

Active

Hirose Electric USA, Inc.

[FUNCTIONMAX ] HIGH-SPEED TRANSMISSION 0.5MM PITCH BOARD-TO-BOARD FLOATING CONNECTORS

Deep-Dive with AI

Search across all available documentation for this part.

FX23L-20P-0.5SV8

Active

Hirose Electric USA, Inc.

[FUNCTIONMAX ] HIGH-SPEED TRANSMISSION 0.5MM PITCH BOARD-TO-BOARD FLOATING CONNECTORS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX23L-20P-0.5SV8

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide
Height Above Board	0.27 in
Height Above Board	6.85 mm
Mounting Type	Surface Mount
Number of Positions	24
Number of Positions [custom]	4
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

FX23L Series

Part	Number of Positions	Number of Positions [custom]	Number of Rows	Mounting Type	Connector Type	Height Above Board	Height Above Board	Features	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Finish
Hirose Electric USA, Inc. FX23L-20P-0.5SV12(20)	24	4	2	Surface Mount	Header Outer Shroud Contacts	0.427 in	10.85 mm	Board Guide	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-20S-0.5SV	24	4	2	Surface Mount	Center Strip Contacts Receptacle	0.228 in	5.8 mm	Board Guide Pick and Place	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-20P-0.5SV12	24	4	2	Surface Mount	Header Outer Shroud Contacts	0.427 in	10.85 mm	Board Guide	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-40P-0.5SV12	44		2	Surface Mount	Header Outer Shroud Contacts	0.427 in	10.85 mm	Board Guide	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-20P-0.5SV12(01)	24	4	2	Surface Mount	Header Outer Shroud Contacts	0.427 in	10.85 mm	Board Guide	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-40S-0.5SV	44		2	Surface Mount	Center Strip Contacts Receptacle	0.228 in	5.8 mm	Board Guide Pick and Place	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-20P-0.5SV8	24	4	2	Surface Mount	Header Outer Shroud Contacts	0.27 in	6.85 mm	Board Guide	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-60P-0.5SV12	4 60		2	Surface Mount	Header Outer Shroud Contacts	0.427 in	10.85 mm	Board Guide	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-100P-0.5SV10(20)	104		2	Surface Mount	Header Outer Shroud Contacts			Board Guide	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-100P-0.5SV12	104		2	Surface Mount	Header Outer Shroud Contacts	0.427 in	10.85 mm	Board Guide	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.26
		10	$ 2.49
		25	$ 2.24
		50	$ 2.07
		100	$ 1.92
		250	$ 1.74
		500	$ 1.62
		1000	$ 1.51
		2500	$ 1.38
Newark	Each	1	$ 2.32
		960	$ 2.04

Description

General part information

FX23L Series

24 (20 + 4 Power) Position Connector Header, Outer Shroud Contacts Surface Mount Gold
