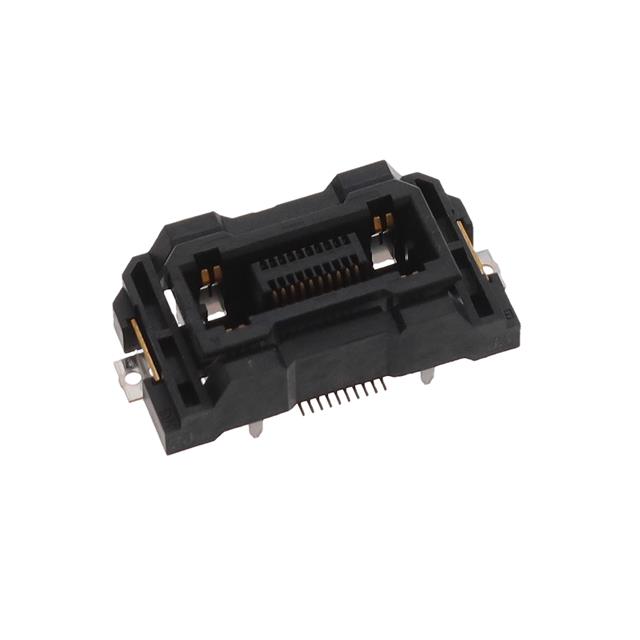

FX23L-20S-0.5SV

Active

Hirose Electric USA, Inc.

CONN RCPT

Deep-Dive with AI

Search across all available documentation for this part.

FX23L-20S-0.5SV

Active

Hirose Electric USA, Inc.

CONN RCPT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX23L-20S-0.5SV

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Pick and Place, Board Guide
Height Above Board	5.8 mm
Height Above Board	0.228 in
Mounting Type	Surface Mount
Number of Positions	24
Number of Positions [custom]	4
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

FX23L Series

Part	Number of Positions	Number of Positions [custom]	Number of Rows	Mounting Type	Connector Type	Height Above Board	Height Above Board	Features	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Finish
Hirose Electric USA, Inc. FX23L-20P-0.5SV12(20)	24	4	2	Surface Mount	Header Outer Shroud Contacts	0.427 in	10.85 mm	Board Guide	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-20S-0.5SV	24	4	2	Surface Mount	Center Strip Contacts Receptacle	0.228 in	5.8 mm	Board Guide Pick and Place	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-20P-0.5SV12	24	4	2	Surface Mount	Header Outer Shroud Contacts	0.427 in	10.85 mm	Board Guide	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-40P-0.5SV12	44		2	Surface Mount	Header Outer Shroud Contacts	0.427 in	10.85 mm	Board Guide	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-20P-0.5SV12(01)	24	4	2	Surface Mount	Header Outer Shroud Contacts	0.427 in	10.85 mm	Board Guide	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-40S-0.5SV	44		2	Surface Mount	Center Strip Contacts Receptacle	0.228 in	5.8 mm	Board Guide Pick and Place	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-20P-0.5SV8	24	4	2	Surface Mount	Header Outer Shroud Contacts	0.27 in	6.85 mm	Board Guide	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-60P-0.5SV12	4 60		2	Surface Mount	Header Outer Shroud Contacts	0.427 in	10.85 mm	Board Guide	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-100P-0.5SV10(20)	104		2	Surface Mount	Header Outer Shroud Contacts			Board Guide	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold
Hirose Electric USA, Inc. FX23L-100P-0.5SV12	104		2	Surface Mount	Header Outer Shroud Contacts	0.427 in	10.85 mm	Board Guide	4 Áin	0.1 Ám	0.5 mm	0.02 in	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.91
		10	$ 2.99
		25	$ 2.69
		50	$ 2.49
		100	$ 2.31
		250	$ 2.09
		500	$ 1.95
		1000	$ 1.82
		2500	$ 1.66

Description

General part information

FX23L Series

24 (20 + 4 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

No documents available
