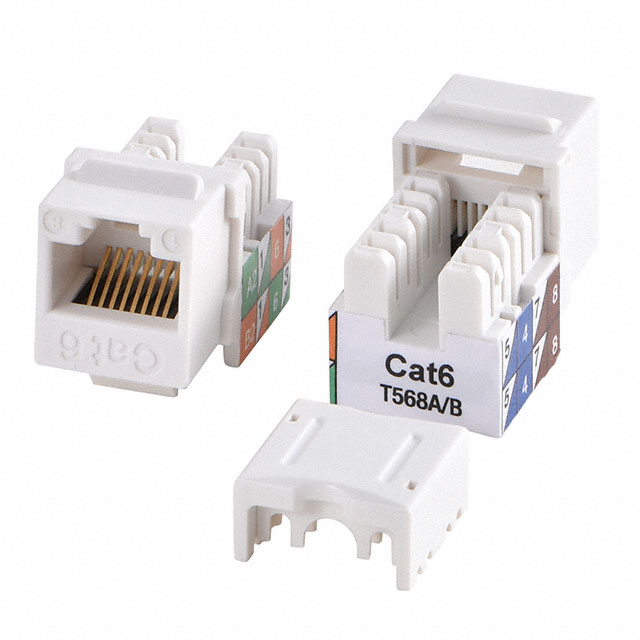

A-KEY-8-EA-GIB-WIW1
ActiveAssmann WSW Components
INSERT RJ45 JACK TO IDC CONN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A-KEY-8-EA-GIB-WIW1
ActiveAssmann WSW Components
INSERT RJ45 JACK TO IDC CONN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A-KEY-8-EA-GIB-WIW1 |
|---|---|
| Exterior Contact Finish | Gold |
| Exterior Contact Finish Thickness | 1.27 Ám |
| Exterior Contact Finish Thickness | 50 Áin |
| Exterior Contact Material | Phosphor Bronze |
| Exterior Housing Color | White |
| Exterior Type (Adapter End) | Modular Jack 8p8c (RJ45, Ethernet) |
| Interior Contact Material | Phosphor Bronze |
| Interior Housing Color | White |
| Interior Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Interior Type (Adapter End) | Pressdown, IDC, Punchdown Block |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Ratings | Cat6 |
| Specifications | Power over Ethernet (PoE) |
| Style | Modular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 100 | $ 2.58 | |
Description
General part information
A-KEY-8 Series
Insert Modular Jack 8p8c (RJ45, Ethernet) To IDC, Pressdown, Punchdown Block White
