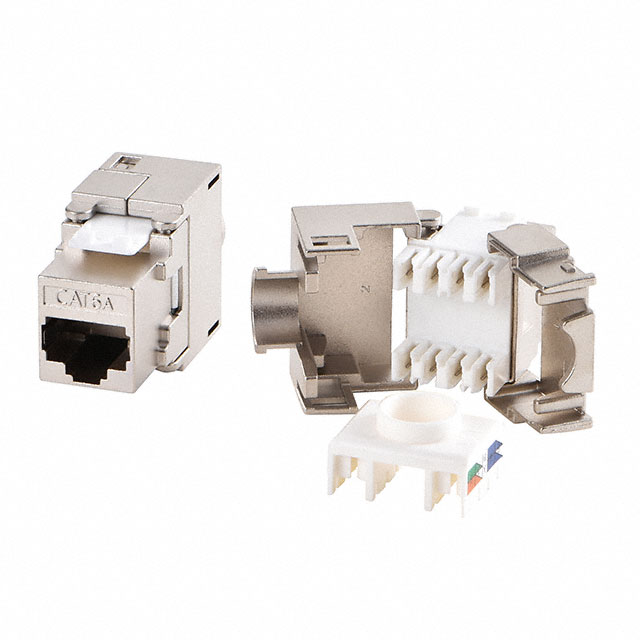

A-KEY-8-EG-GIB-S1
ActiveAssmann WSW Components
INSERT RJ45 JACK TO IDC CONN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A-KEY-8-EG-GIB-S1 |
|---|---|
| Exterior Contact Finish | Gold |
| Exterior Contact Finish Thickness | 1.27 Ám |
| Exterior Contact Finish Thickness | 50 Áin |
| Exterior Contact Material | Phosphor Bronze |
| Exterior Housing Color | White |
| Exterior Type (Adapter End) | Modular Jack 8p8c (RJ45, Ethernet) |
| Features | Shielded |
| Interior Contact Material | Phosphor Bronze |
| Interior Housing Color | White |
| Interior Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Interior Type (Adapter End) | Pressdown, IDC, Punchdown Block |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Ratings | Cat6a |
| Specifications | Power over Ethernet (PoE) |
| Style | Modular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.80 | |
| 10 | $ 6.75 | |||
| 25 | $ 6.09 | |||
| 50 | $ 5.65 | |||
| 100 | $ 5.25 | |||
| 250 | $ 4.77 | |||
| 500 | $ 4.45 | |||
| 1000 | $ 4.16 | |||
| 2500 | $ 3.88 | |||
Description
General part information
A-KEY-8 Series
Insert Modular Jack 8p8c (RJ45, Ethernet) To IDC, Pressdown, Punchdown Block White
