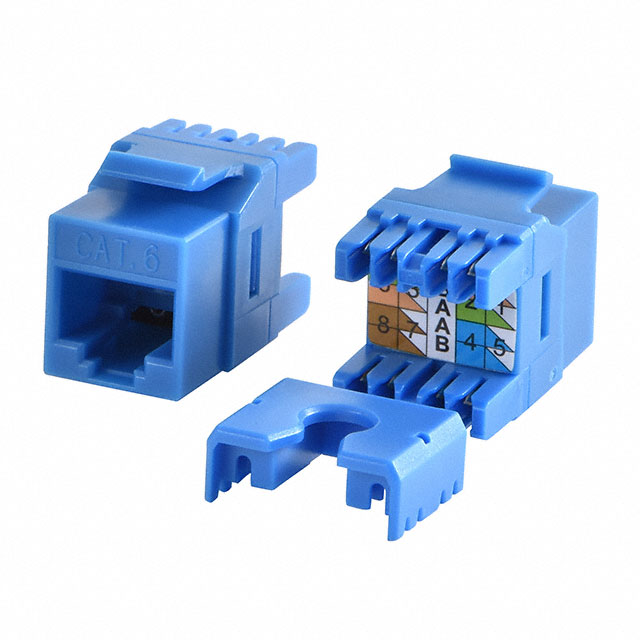

A-KEY-8-EG-GIB-WIB2
ActiveAssmann WSW Components
INSERT RJ45 JACK TO IDC CONN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A-KEY-8-EG-GIB-WIB2
ActiveAssmann WSW Components
INSERT RJ45 JACK TO IDC CONN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A-KEY-8-EG-GIB-WIB2 |
|---|---|
| Exterior Contact Finish | Gold |
| Exterior Contact Finish Thickness | 1.27 Ám |
| Exterior Contact Finish Thickness | 50 Áin |
| Exterior Contact Material | Phosphor Bronze |
| Exterior Housing Color | Blue |
| Exterior Type (Adapter End) | Modular Jack 8p8c (RJ45, Ethernet) |
| Interior Contact Material | Phosphor Bronze |
| Interior Housing Color | Blue |
| Interior Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Interior Type (Adapter End) | Pressdown, IDC, Punchdown Block |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Ratings | Cat6 |
| Specifications | Power over Ethernet (PoE) |
| Style | Modular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.70 | |
| 10 | $ 3.36 | |||
| 25 | $ 3.18 | |||
| 50 | $ 3.11 | |||
| 100 | $ 2.96 | |||
| 250 | $ 2.59 | |||
| 500 | $ 2.52 | |||
| 1000 | $ 2.15 | |||
| 2500 | $ 2.00 | |||
Description
General part information
A-KEY-8 Series
Insert Modular Jack 8p8c (RJ45, Ethernet) To IDC, Pressdown, Punchdown Block Blue
