15550122601000

Active

HARTING Technology Group

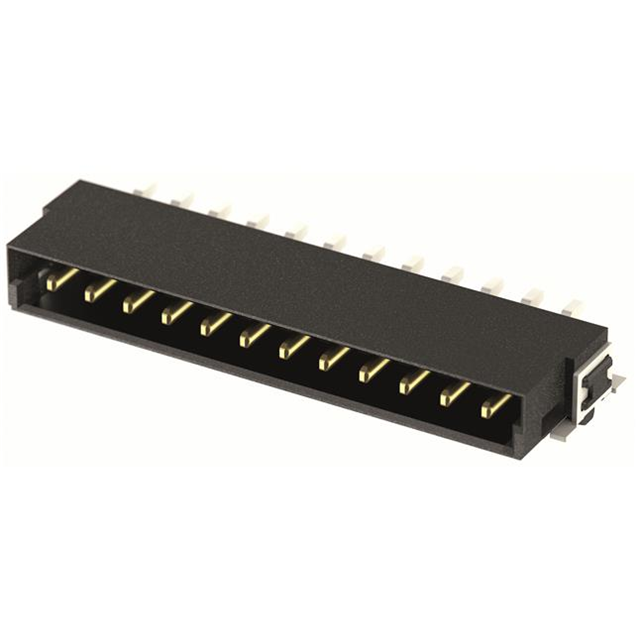

CONN SHROUDED HEADER (4 SIDES) M 12POWER POS 2.54MM SOLDER RA SIDE ENTRY SMD HAR-FLEX® REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 15550122601000 Prod Declaration Cert

15550122601000

Active

HARTING Technology Group

CONN SHROUDED HEADER (4 SIDES) M 12POWER POS 2.54MM SOLDER RA SIDE ENTRY SMD HAR-FLEX® REEL

Deep-Dive with AI

DocumentsDatasheet 15550122601000 Prod Declaration Cert

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	15550122601000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating (Amps)	18 A
Fastening Type	Push-Pull
Features	Solder Retention, Board Guide
Insulation Color	Black
Insulation Height	4.24 mm
Insulation Height	0.167 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

har-flex-r-power Series

Part	Style	Number of Rows	Number of Positions	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Termination	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Type	Contact Shape	Number of Positions Loaded	Insulation Color	Current Rating (Amps)	Connector Type	Contact Material	Mounting Type	Contact Finish - Mating	Insulation Material	Applications	Features	Contact Finish - Post	Insulation Height	Insulation Height	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post
HARTING Technology Group 15620022601000	Board to Board Cable	1	2	UL94 V-0	-55 °C	125 °C	0.356 in	9.05 mm	Solder	0.1 in	2.54 mm	Push-Pull	Female Socket	Square	All	Black	25 A	Receptacle	Copper Alloy	Surface Mount	Gold	Liquid Crystal Polymer (LCP)	General Purpose	Board Guide Pick and Place Solder Retention	Tin
HARTING Technology Group 15650122601000	Board to Board Cable	1	12	UL94 V-0	-55 °C	125 °C			Solder	0.1 in	2.54 mm	Push-Pull	Female Socket	Square	All	Black	18 A	Receptacle	Copper Alloy	Surface Mount Right Angle	Gold	Liquid Crystal Polymer (LCP)	General Purpose	Board Guide Solder Retention	Tin	0.145 "	3.68 mm
HARTING Technology Group 15550122601000	Board to Board Cable	1	12	UL94 V-0	-55 °C	125 °C			Solder	0.1 in	2.54 mm	Push-Pull	Male Pin	Rectangular	All	Black	18 A	Header	Copper Alloy	Surface Mount Right Angle	Gold	Liquid Crystal Polymer (LCP)		Board Guide Solder Retention	Tin	0.167 in	4.24 mm	Shrouded - 4 Wall
HARTING Technology Group 15650022601000	Board to Board Cable	1	2	UL94 V-0	-55 °C	125 °C			Solder	0.1 in	2.54 mm	Push-Pull	Female Socket	Square	All	Black	26 A	Receptacle	Copper Alloy	Surface Mount Right Angle	Gold	Liquid Crystal Polymer (LCP)	General Purpose	Board Guide Solder Retention	Tin	0.145 "	3.68 mm
HARTING Technology Group 15520122601000	Board to Board Cable	1	12	UL94 V-0	-55 °C	125 °C			Solder	0.1 in	2.54 mm	Push-Pull	Male Pin	Rectangular	All	Black	18 A	Header	Copper Alloy	Surface Mount	Gold	Liquid Crystal Polymer (LCP)		Board Guide Pick and Place Solder Retention	Tin	0.319 in	8.1 mm	Shrouded - 4 Wall	0.181 in	4.6 mm
HARTING Technology Group 15620122701000	Board to Board Cable	1	12	UL94 V-0	-55 °C	125 °C	0.356 in	9.05 mm	Solder	0.1 in	2.54 mm	Push-Pull	Female Socket	Square	All	Black	19 A	Receptacle	Copper Alloy	Through Hole	Gold	Liquid Crystal Polymer (LCP)	General Purpose	Board Guide Pick and Place Solder Retention	Tin						2.5 mm	0.098 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 13.84
		10	$ 9.98
		100	$ 7.55
	Digi-Reel®	1	$ 13.84
		10	$ 9.98
		100	$ 7.55
	Tape & Reel (TR)	400	$ 5.28

Description

General part information

har-flex-r-power Series

Connector Header Surface Mount, Right Angle 12 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

15550122601000 Prod Declaration Cert

Datasheet
