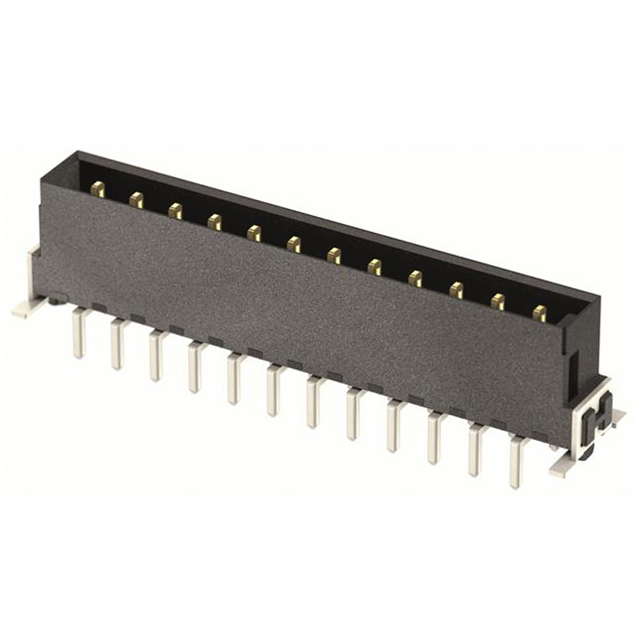

CONNECTOR: PCB TO PCB; SOCKET; MALE; PIN: 12; HAR-FLEX® POWER; SMT

Deep-Dive with AI

Search across all available documentation for this part.

Documents15520122601000 Prod Declaration Cert Datasheet

15520122601000

Active

HARTING Technology Group

CONNECTOR: PCB TO PCB; SOCKET; MALE; PIN: 12; HAR-FLEX® POWER; SMT

Deep-Dive with AI

Documents15520122601000 Prod Declaration Cert Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	15520122601000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Mating	0.181 in
Contact Length - Mating	4.6 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating (Amps)	18 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Black
Insulation Height	8.1 mm
Insulation Height	0.319 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

har-flex-r-power Series

Part	Style	Number of Rows	Number of Positions	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Termination	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Type	Contact Shape	Number of Positions Loaded	Insulation Color	Current Rating (Amps)	Connector Type	Contact Material	Mounting Type	Contact Finish - Mating	Insulation Material	Applications	Features	Contact Finish - Post	Insulation Height	Insulation Height	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post
HARTING Technology Group 15620022601000	Board to Board Cable	1	2	UL94 V-0	-55 °C	125 °C	0.356 in	9.05 mm	Solder	0.1 in	2.54 mm	Push-Pull	Female Socket	Square	All	Black	25 A	Receptacle	Copper Alloy	Surface Mount	Gold	Liquid Crystal Polymer (LCP)	General Purpose	Board Guide Pick and Place Solder Retention	Tin
HARTING Technology Group 15650122601000	Board to Board Cable	1	12	UL94 V-0	-55 °C	125 °C			Solder	0.1 in	2.54 mm	Push-Pull	Female Socket	Square	All	Black	18 A	Receptacle	Copper Alloy	Surface Mount Right Angle	Gold	Liquid Crystal Polymer (LCP)	General Purpose	Board Guide Solder Retention	Tin	0.145 "	3.68 mm
HARTING Technology Group 15550122601000	Board to Board Cable	1	12	UL94 V-0	-55 °C	125 °C			Solder	0.1 in	2.54 mm	Push-Pull	Male Pin	Rectangular	All	Black	18 A	Header	Copper Alloy	Surface Mount Right Angle	Gold	Liquid Crystal Polymer (LCP)		Board Guide Solder Retention	Tin	0.167 in	4.24 mm	Shrouded - 4 Wall
HARTING Technology Group 15650022601000	Board to Board Cable	1	2	UL94 V-0	-55 °C	125 °C			Solder	0.1 in	2.54 mm	Push-Pull	Female Socket	Square	All	Black	26 A	Receptacle	Copper Alloy	Surface Mount Right Angle	Gold	Liquid Crystal Polymer (LCP)	General Purpose	Board Guide Solder Retention	Tin	0.145 "	3.68 mm
HARTING Technology Group 15520122601000	Board to Board Cable	1	12	UL94 V-0	-55 °C	125 °C			Solder	0.1 in	2.54 mm	Push-Pull	Male Pin	Rectangular	All	Black	18 A	Header	Copper Alloy	Surface Mount	Gold	Liquid Crystal Polymer (LCP)		Board Guide Pick and Place Solder Retention	Tin	0.319 in	8.1 mm	Shrouded - 4 Wall	0.181 in	4.6 mm
HARTING Technology Group 15620122701000	Board to Board Cable	1	12	UL94 V-0	-55 °C	125 °C	0.356 in	9.05 mm	Solder	0.1 in	2.54 mm	Push-Pull	Female Socket	Square	All	Black	19 A	Receptacle	Copper Alloy	Through Hole	Gold	Liquid Crystal Polymer (LCP)	General Purpose	Board Guide Pick and Place Solder Retention	Tin						2.5 mm	0.098 in
