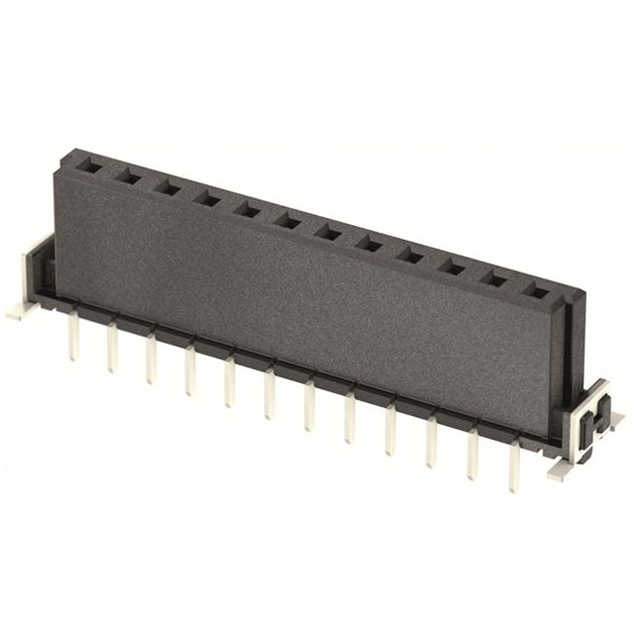

CONNECTOR: PCB TO PCB; SOCKET; FEMALE; PIN: 12; HAR-FLEX® POWER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 15620122701000 Prod Declaration Cert

15620122701000

Active

HARTING Technology Group

CONNECTOR: PCB TO PCB; SOCKET; FEMALE; PIN: 12; HAR-FLEX® POWER

Deep-Dive with AI

DocumentsDatasheet 15620122701000 Prod Declaration Cert

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	15620122701000

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	19 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Black
Insulation Height [z]	0.356 in
Insulation Height [z]	9.05 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder

har-flex-r-power Series

Part	Style	Number of Rows	Number of Positions	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Termination	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Type	Contact Shape	Number of Positions Loaded	Insulation Color	Current Rating (Amps)	Connector Type	Contact Material	Mounting Type	Contact Finish - Mating	Insulation Material	Applications	Features	Contact Finish - Post	Insulation Height	Insulation Height	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post
HARTING Technology Group 15620022601000	Board to Board Cable	1	2	UL94 V-0	-55 °C	125 °C	0.356 in	9.05 mm	Solder	0.1 in	2.54 mm	Push-Pull	Female Socket	Square	All	Black	25 A	Receptacle	Copper Alloy	Surface Mount	Gold	Liquid Crystal Polymer (LCP)	General Purpose	Board Guide Pick and Place Solder Retention	Tin
HARTING Technology Group 15650122601000	Board to Board Cable	1	12	UL94 V-0	-55 °C	125 °C			Solder	0.1 in	2.54 mm	Push-Pull	Female Socket	Square	All	Black	18 A	Receptacle	Copper Alloy	Surface Mount Right Angle	Gold	Liquid Crystal Polymer (LCP)	General Purpose	Board Guide Solder Retention	Tin	0.145 "	3.68 mm
HARTING Technology Group 15550122601000	Board to Board Cable	1	12	UL94 V-0	-55 °C	125 °C			Solder	0.1 in	2.54 mm	Push-Pull	Male Pin	Rectangular	All	Black	18 A	Header	Copper Alloy	Surface Mount Right Angle	Gold	Liquid Crystal Polymer (LCP)		Board Guide Solder Retention	Tin	0.167 in	4.24 mm	Shrouded - 4 Wall
HARTING Technology Group 15650022601000	Board to Board Cable	1	2	UL94 V-0	-55 °C	125 °C			Solder	0.1 in	2.54 mm	Push-Pull	Female Socket	Square	All	Black	26 A	Receptacle	Copper Alloy	Surface Mount Right Angle	Gold	Liquid Crystal Polymer (LCP)	General Purpose	Board Guide Solder Retention	Tin	0.145 "	3.68 mm
HARTING Technology Group 15520122601000	Board to Board Cable	1	12	UL94 V-0	-55 °C	125 °C			Solder	0.1 in	2.54 mm	Push-Pull	Male Pin	Rectangular	All	Black	18 A	Header	Copper Alloy	Surface Mount	Gold	Liquid Crystal Polymer (LCP)		Board Guide Pick and Place Solder Retention	Tin	0.319 in	8.1 mm	Shrouded - 4 Wall	0.181 in	4.6 mm
HARTING Technology Group 15620122701000	Board to Board Cable	1	12	UL94 V-0	-55 °C	125 °C	0.356 in	9.05 mm	Solder	0.1 in	2.54 mm	Push-Pull	Female Socket	Square	All	Black	19 A	Receptacle	Copper Alloy	Through Hole	Gold	Liquid Crystal Polymer (LCP)	General Purpose	Board Guide Pick and Place Solder Retention	Tin						2.5 mm	0.098 in
