MBG19R-1

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 19POS PNL MT

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 19POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	MBG19R-1

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Insert Material	Thermoplastic, Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material	Thermoplastic Polyester
Shell Size - Insert	19
Shielding	Unshielded
Type	For Male Pins

Part	Contact Type	Shielding	Mounting Type	Fastening Type	Insert Material	Contact Shape	Note	Contact Size	Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Connector Type	Number of Positions	Shell Size - Insert	Material Flammability Rating	Shell Material	Material	Includes	For Use With/Related Products	Color	Cable Exit	Features	Cable Opening [custom]	Cable Opening [custom]	Mounting Feature
Souriau-Sunbank by Eaton MBG19P-1	Crimp	Unshielded	Free Hanging (In-Line)	Latch Lock	Thermoplastic Halogen Free	Circular	Contacts Not Included	16	For Female Sockets	-55 °C	125 °C	Black	Plug Housing	19	19	UL94 V-0	Thermoplastic Polyester
Souriau-Sunbank by Eaton MBG19S-1									Backshell Cable Clamp							UL94 V-0		Thermoplastic Glass Filled	1 Backshell 2 Screws 3 pc Cable Clamp	MBG Connectors	Black	180 °	Clamp Screws	0.839 in	21.3 mm
Souriau-Sunbank by Eaton MBG19R-1	Crimp	Unshielded		Latch Lock	Thermoplastic Halogen Free	Circular	Contacts Not Included	16	For Male Pins	-55 °C	125 °C	Black	Receptacle Housing	19	19	UL94 V-0	Thermoplastic Polyester									Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

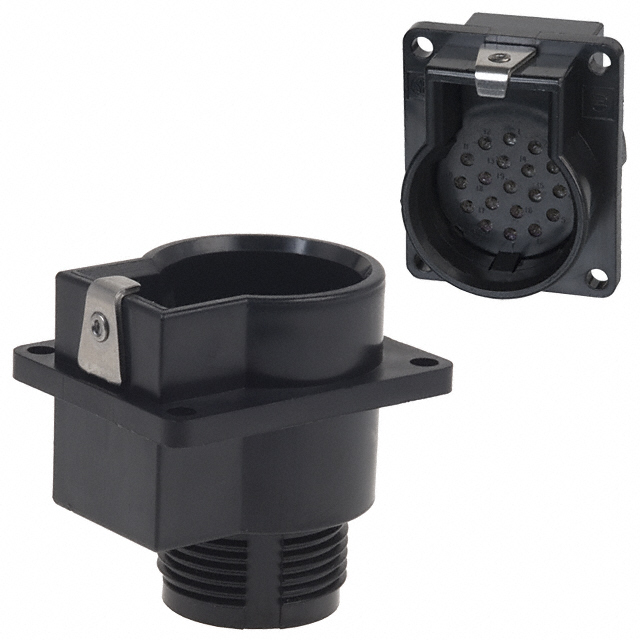

19 Position Circular Connector Receptacle Housing Panel Mount
