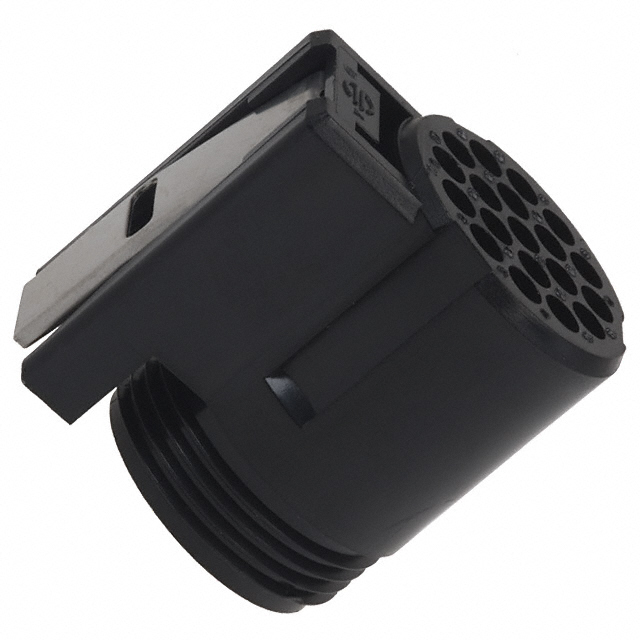

MBG19P-1
ActiveSouriau-Sunbank by Eaton
CONN PLG HSG FMALE 19POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsMBG Series Brief
MBG19P-1
ActiveSouriau-Sunbank by Eaton
CONN PLG HSG FMALE 19POS INLINE
Deep-Dive with AI
DocumentsMBG Series Brief
Technical Specifications
Parameters and characteristics for this part
| Specification | MBG19P-1 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Latch Lock |
| Housing Color | Black |
| Insert Material | Thermoplastic, Halogen Free |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 19 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material | Thermoplastic Polyester |
| Shell Size - Insert | 19 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.20 | |
| 10 | $ 14.78 | |||
| 25 | $ 13.37 | |||
| 50 | $ 12.42 | |||
| 100 | $ 11.56 | |||
| 250 | $ 10.54 | |||
| 500 | $ 9.86 | |||
| 1000 | $ 9.26 | |||
Description
General part information
MBG19 Series
19 Position Circular Connector Plug Housing Free Hanging (In-Line)
