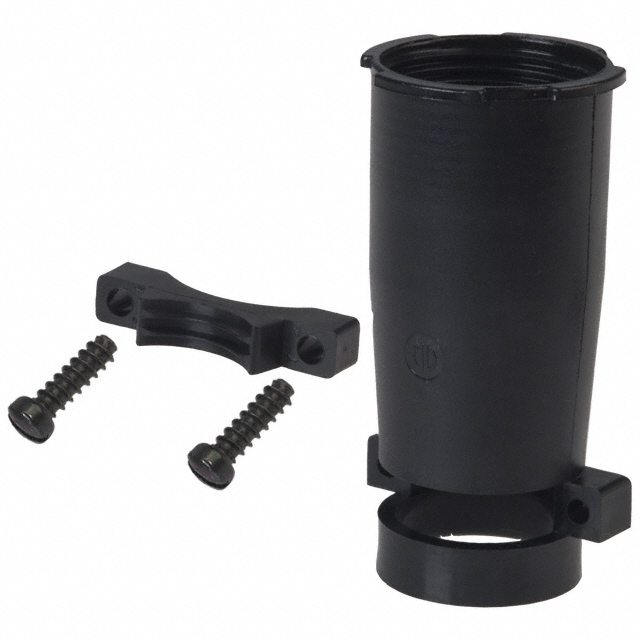

MBG19S-1

Active

Souriau-Sunbank by Eaton

CONN BACKSHELL W/CLMP BLACK

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN BACKSHELL W/CLMP BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	MBG19S-1

Cable Exit	180 °
Cable Opening [custom]	0.839 in
Cable Opening [custom]	21.3 mm
Color	Black
Features	Clamp Screws
For Use With/Related Products	MBG Connectors
Includes	2 Screws, 1 Backshell, 3 pc Cable Clamp
Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Type	Backshell, Cable Clamp

Part	Contact Type	Shielding	Mounting Type	Fastening Type	Insert Material	Contact Shape	Note	Contact Size	Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Connector Type	Number of Positions	Shell Size - Insert	Material Flammability Rating	Shell Material	Material	Includes	For Use With/Related Products	Color	Cable Exit	Features	Cable Opening [custom]	Cable Opening [custom]	Mounting Feature
Souriau-Sunbank by Eaton MBG19P-1	Crimp	Unshielded	Free Hanging (In-Line)	Latch Lock	Thermoplastic Halogen Free	Circular	Contacts Not Included	16	For Female Sockets	-55 °C	125 °C	Black	Plug Housing	19	19	UL94 V-0	Thermoplastic Polyester
Souriau-Sunbank by Eaton MBG19S-1									Backshell Cable Clamp							UL94 V-0		Thermoplastic Glass Filled	1 Backshell 2 Screws 3 pc Cable Clamp	MBG Connectors	Black	180 °	Clamp Screws	0.839 in	21.3 mm
Souriau-Sunbank by Eaton MBG19R-1	Crimp	Unshielded		Latch Lock	Thermoplastic Halogen Free	Circular	Contacts Not Included	16	For Male Pins	-55 °C	125 °C	Black	Receptacle Housing	19	19	UL94 V-0	Thermoplastic Polyester									Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Connector Backshell, Cable Clamp
