09140013073

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, PE MOD, HAN-MODULAR SERIES, INSERT, 1 CONTACT, PLUG, CRIMP PIN

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, PE MOD, HAN-MODULAR SERIES, INSERT, 1 CONTACT, PLUG, CRIMP PIN

Technical Specifications

Parameters and characteristics for this part

Part	Material Flammability Rating	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Connector Type	Termination Style	Color	Voltage Rating	Housing Material	Number of Positions	Specifications	Accessory Type	For Use With/Related Products	Contact Type	Contact Material	Contact Finish
HARTING Technology Group 09140013102	UL94 V-0	Female	125 °C	-40 °C	200 A	Module without Contacts	Crimp	Gray	800 V	Polycarbonate (PC)	1
HARTING Technology Group 09140013011												Male	Insert Receiving Frame	Han-Modular® Gigabit Modules
HARTING Technology Group 09140013001	UL94 V-0	Male	125 °C	-40 °C	200 A	Module without Contacts	Crimp	Gray	1000 VDC	Polycarbonate (PC)	1				Han-Modular®
HARTING Technology Group 09140013034
HARTING Technology Group 09140013172		Female	125 °C	-40 °C		Module	Crimp			Zinc Die Cast	1					Copper Alloy	Silver
HARTING Technology Group 09140013032	UL94 V-0	Male	125 °C	-40 °C		Insert without Contacts	Crimp Screw	Yellow		Polycarbonate (PC)	1				Han-Modular®
HARTING Technology Group 09140013031	UL94 V-0	Male	125 °C	-40 °C	100 A	Module without Contacts	Crimp Screw	Gray	830 V	Polycarbonate (PC)	1
HARTING Technology Group 09140013173		Female	125 °C	-40 °C		Module	Crimp			Zinc Die Cast	1					Copper Alloy	Silver
HARTING Technology Group 09140013033		Male
HARTING Technology Group 09140013073		Male	125 °C	-40 °C		Module	Crimp			Zinc Die Cast	1					Copper Alloy	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

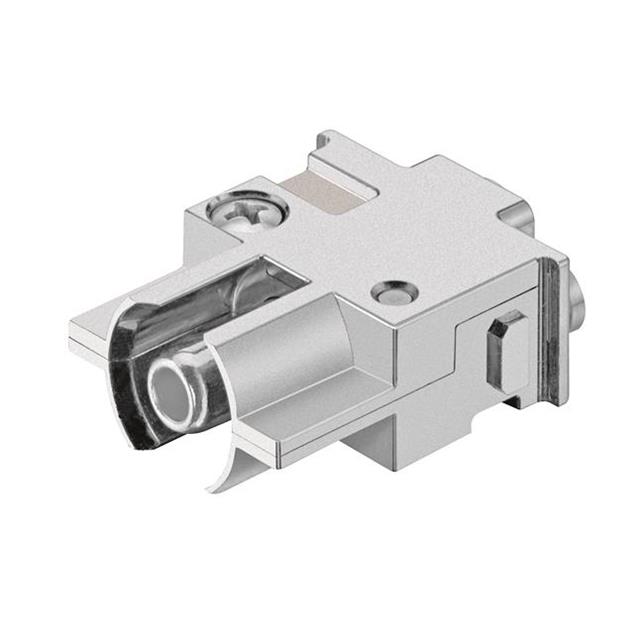

The 09140013073 from Harting is a Han PE-module male crimp 25mm². It is made of copper alloy with silver plated contacts.
