09140013032

Active

HARTING Technology Group

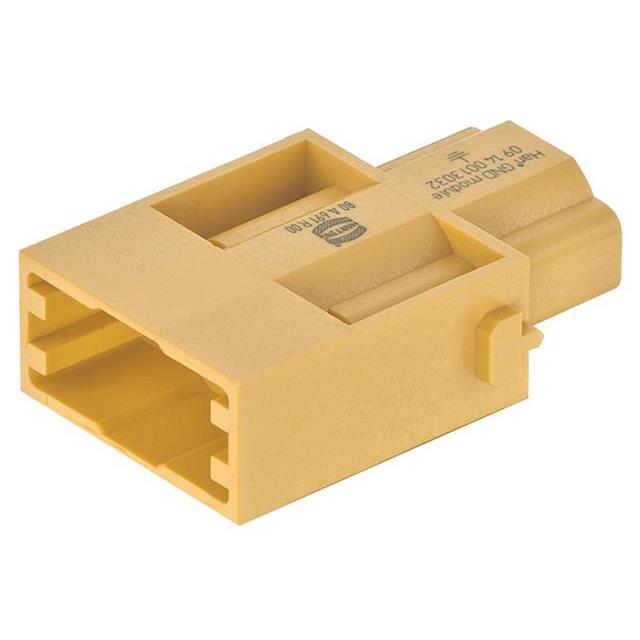

INSERT MALE 1POS CRIMP SCREW

Search across all available documentation for this part.

Active

HARTING Technology Group

INSERT MALE 1POS CRIMP SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	09140013032

Color	Yellow
Connector Type	Insert without Contacts
Contact Type	Han-Modular®
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp, Screw

Part	Material Flammability Rating	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Connector Type	Termination Style	Color	Voltage Rating	Housing Material	Number of Positions	Specifications	Accessory Type	For Use With/Related Products	Contact Type	Contact Material	Contact Finish
HARTING Technology Group 09140013102	UL94 V-0	Female	125 °C	-40 °C	200 A	Module without Contacts	Crimp	Gray	800 V	Polycarbonate (PC)	1
HARTING Technology Group 09140013011												Male	Insert Receiving Frame	Han-Modular® Gigabit Modules
HARTING Technology Group 09140013001	UL94 V-0	Male	125 °C	-40 °C	200 A	Module without Contacts	Crimp	Gray	1000 VDC	Polycarbonate (PC)	1				Han-Modular®
HARTING Technology Group 09140013034
HARTING Technology Group 09140013172		Female	125 °C	-40 °C		Module	Crimp			Zinc Die Cast	1					Copper Alloy	Silver
HARTING Technology Group 09140013032	UL94 V-0	Male	125 °C	-40 °C		Insert without Contacts	Crimp Screw	Yellow		Polycarbonate (PC)	1				Han-Modular®
HARTING Technology Group 09140013031	UL94 V-0	Male	125 °C	-40 °C	100 A	Module without Contacts	Crimp Screw	Gray	830 V	Polycarbonate (PC)	1
HARTING Technology Group 09140013173		Female	125 °C	-40 °C		Module	Crimp			Zinc Die Cast	1					Copper Alloy	Silver
HARTING Technology Group 09140013033		Male
HARTING Technology Group 09140013073		Male	125 °C	-40 °C		Module	Crimp			Zinc Die Cast	1					Copper Alloy	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Yellow 1 Position Crimp; Screw
