HEAVY DUTY CONNECTOR, SOCKET MODULE, LESS CONTACTS, FINGER PROTECTED, HAN-MODULAR SERIES, INSERT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

09140013102

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, SOCKET MODULE, LESS CONTACTS, FINGER PROTECTED, HAN-MODULAR SERIES, INSERT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09140013102

Color	Gray
Connector Type	Module without Contacts
Current Rating (Amps)	200 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	800 V

09140013 Series

Part	Material Flammability Rating	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Connector Type	Termination Style	Color	Voltage Rating	Housing Material	Number of Positions	Specifications	Accessory Type	For Use With/Related Products	Contact Type	Contact Material	Contact Finish
HARTING Technology Group 09140013102	UL94 V-0	Female	125 °C	-40 °C	200 A	Module without Contacts	Crimp	Gray	800 V	Polycarbonate (PC)	1
HARTING Technology Group 09140013011												Male	Insert Receiving Frame	Han-Modular® Gigabit Modules
HARTING Technology Group 09140013001	UL94 V-0	Male	125 °C	-40 °C	200 A	Module without Contacts	Crimp	Gray	1000 VDC	Polycarbonate (PC)	1				Han-Modular®
HARTING Technology Group 09140013034
HARTING Technology Group 09140013172		Female	125 °C	-40 °C		Module	Crimp			Zinc Die Cast	1					Copper Alloy	Silver
HARTING Technology Group 09140013032	UL94 V-0	Male	125 °C	-40 °C		Insert without Contacts	Crimp Screw	Yellow		Polycarbonate (PC)	1				Han-Modular®
HARTING Technology Group 09140013031	UL94 V-0	Male	125 °C	-40 °C	100 A	Module without Contacts	Crimp Screw	Gray	830 V	Polycarbonate (PC)	1
HARTING Technology Group 09140013173		Female	125 °C	-40 °C		Module	Crimp			Zinc Die Cast	1					Copper Alloy	Silver
HARTING Technology Group 09140013033		Male
HARTING Technology Group 09140013073		Male	125 °C	-40 °C		Module	Crimp			Zinc Die Cast	1					Copper Alloy	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.46
		10	$ 22.39
		25	$ 20.08
		50	$ 18.58
		100	$ 17.26
		250	$ 15.77
		500	$ 14.79
Newark	Each	1	$ 19.58
		5	$ 19.48
		10	$ 19.37
		25	$ 18.38
		50	$ 17.79
		100	$ 16.37

Description

General part information

09140013 Series

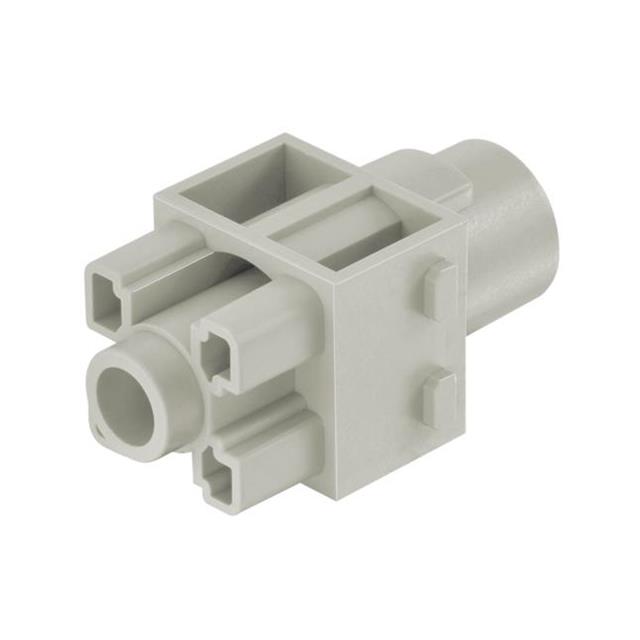

The 09140013102 from Harting is a Han-Modular 200A, single contact finger protected socket module with crimp termination. It is suitable for 3 + PE connector with Han 32 B housing.
