TMB-E8FS-1S1

Active

CarlisleIT

1.85(F)STR,EL,SOLDER

Search across all available documentation for this part.

Active

CarlisleIT

1.85(F)STR,EL,SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Connector Style	Mounting Type	Shield Termination	Body Finish	Center Contact Material	Contact Termination	Housing Color	Number of Ports	Insertion Loss	Voltage Rating	Frequency - Max [Max]	Center Contact Plating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Body Material	Impedance	Features	Dielectric Material
CarlisleIT TMB-E8FS-1S1	1.85 mm	Board Edge End Launch	Solder	Gold	Beryllium Copper	Solder	Gold	1	0.6 dB	400 V	65 GHz	Gold	Female Socket Jack	-65 ░C	165 °C	500	Brass	50 Ohms
CarlisleIT TMB-E8F2-1L1	1.85 mm	Board Edge End Launch	Screw		Beryllium Copper	Compression	Silver	1	0.2 dB	400 V	65 GHz	Gold	Female Socket Jack	-65 ░C	165 °C	500	Stainless Steel	50 Ohms	Field Replaceable For Hermetically Sealed Pin
CarlisleIT TMB-E8FS-1ST	1.85 mm	Board Edge End Launch	Solder	White Bronze	Beryllium Copper	Solder	Silver	1	0.49 dB	400 V	67 GHz		Female Socket Jack	-55 °C	85 °C	500	Brass	50 Ohms		Polytetrafluoroethylene (PTFE)
CarlisleIT TMB-E8FS-1S1	1.85 mm	Board Edge End Launch	Solder	Gold	Beryllium Copper	Solder	Gold	1	0.6 dB	400 V	65 GHz	Gold	Female Socket Jack	-65 ░C	165 °C	500	Brass	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

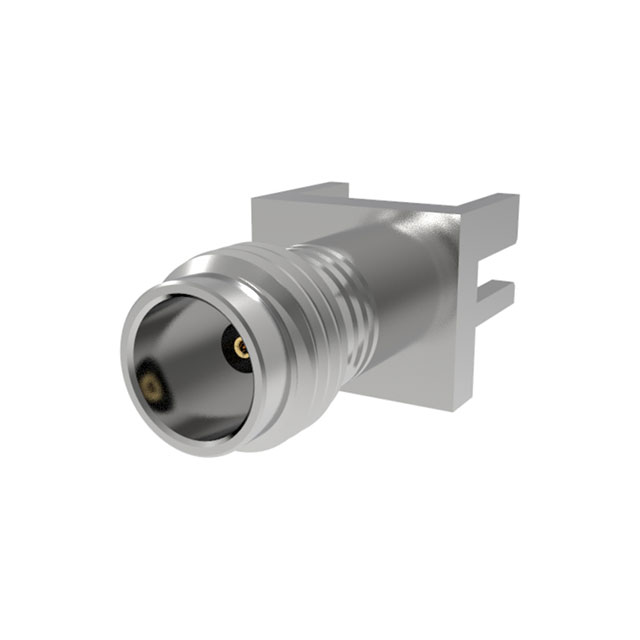

1.85mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
