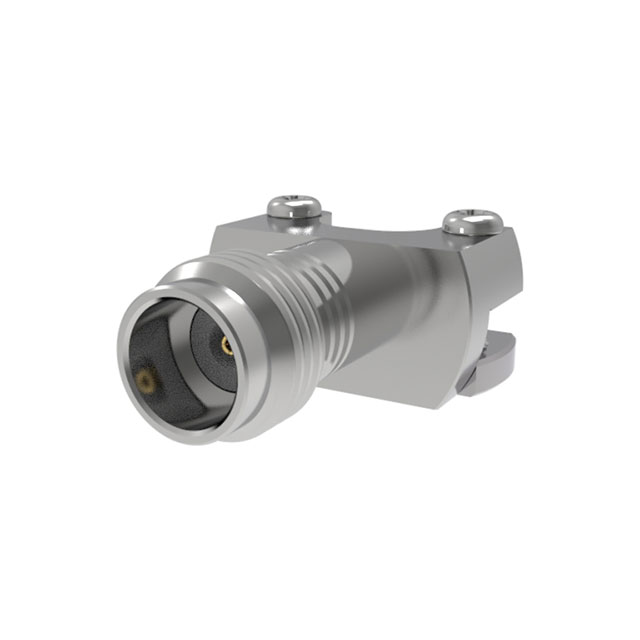

TMB-E8F2-1L1

Active

CarlisleIT

1.85(F)2-H,EL,FIELDREP

Search across all available documentation for this part.

Active

CarlisleIT

1.85(F)2-H,EL,FIELDREP

Technical Specifications

Parameters and characteristics for this part

Specification	TMB-E8F2-1L1

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.85 mm
Connector Type	Female Socket, Jack
Contact Termination	Compression
Features	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	65 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw
Voltage Rating	400 V

Part	Connector Style	Mounting Type	Shield Termination	Body Finish	Center Contact Material	Contact Termination	Housing Color	Number of Ports	Insertion Loss	Voltage Rating	Frequency - Max [Max]	Center Contact Plating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Body Material	Impedance	Features	Dielectric Material
CarlisleIT TMB-E8FS-1S1	1.85 mm	Board Edge End Launch	Solder	Gold	Beryllium Copper	Solder	Gold	1	0.6 dB	400 V	65 GHz	Gold	Female Socket Jack	-65 ░C	165 °C	500	Brass	50 Ohms
CarlisleIT TMB-E8F2-1L1	1.85 mm	Board Edge End Launch	Screw		Beryllium Copper	Compression	Silver	1	0.2 dB	400 V	65 GHz	Gold	Female Socket Jack	-65 ░C	165 °C	500	Stainless Steel	50 Ohms	Field Replaceable For Hermetically Sealed Pin
CarlisleIT TMB-E8FS-1ST	1.85 mm	Board Edge End Launch	Solder	White Bronze	Beryllium Copper	Solder	Silver	1	0.49 dB	400 V	67 GHz		Female Socket Jack	-55 °C	85 °C	500	Brass	50 Ohms		Polytetrafluoroethylene (PTFE)
CarlisleIT TMB-E8FS-1S1	1.85 mm	Board Edge End Launch	Solder	Gold	Beryllium Copper	Solder	Gold	1	0.6 dB	400 V	65 GHz	Gold	Female Socket Jack	-65 ░C	165 °C	500	Brass	50 Ohms
