TMB-E8FS-1ST

Active

CarlisleIT

1.85(F)STR,EL,SMT,SOLDER

Search across all available documentation for this part.

Active

CarlisleIT

1.85(F)STR,EL,SMT,SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	TMB-E8FS-1ST

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Connector Style	1.85 mm
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	67 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.49 dB
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	400 V

Part	Connector Style	Mounting Type	Shield Termination	Body Finish	Center Contact Material	Contact Termination	Housing Color	Number of Ports	Insertion Loss	Voltage Rating	Frequency - Max [Max]	Center Contact Plating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Body Material	Impedance	Features	Dielectric Material
CarlisleIT TMB-E8FS-1S1	1.85 mm	Board Edge End Launch	Solder	Gold	Beryllium Copper	Solder	Gold	1	0.6 dB	400 V	65 GHz	Gold	Female Socket Jack	-65 ░C	165 °C	500	Brass	50 Ohms
CarlisleIT TMB-E8F2-1L1	1.85 mm	Board Edge End Launch	Screw		Beryllium Copper	Compression	Silver	1	0.2 dB	400 V	65 GHz	Gold	Female Socket Jack	-65 ░C	165 °C	500	Stainless Steel	50 Ohms	Field Replaceable For Hermetically Sealed Pin
CarlisleIT TMB-E8FS-1ST	1.85 mm	Board Edge End Launch	Solder	White Bronze	Beryllium Copper	Solder	Silver	1	0.49 dB	400 V	67 GHz		Female Socket Jack	-55 °C	85 °C	500	Brass	50 Ohms		Polytetrafluoroethylene (PTFE)
CarlisleIT TMB-E8FS-1S1	1.85 mm	Board Edge End Launch	Solder	Gold	Beryllium Copper	Solder	Gold	1	0.6 dB	400 V	65 GHz	Gold	Female Socket Jack	-65 ░C	165 °C	500	Brass	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 50.96

General part information

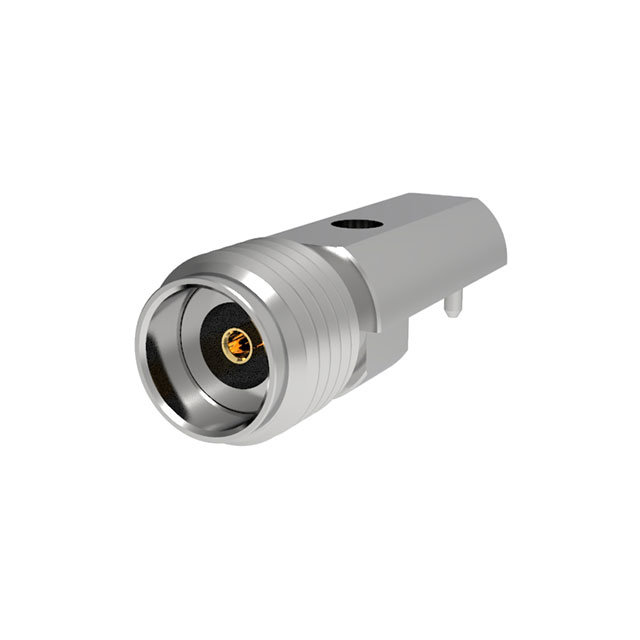

1.85mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
