PXPPAM12RAM08ASTPG9

Active

BULGIN LIMITED

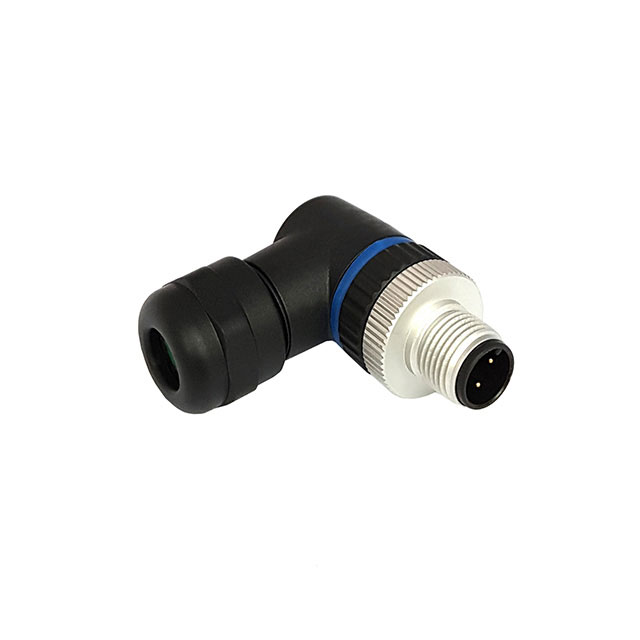

CONN M12 CIRCULAR PIN 8 POS SCREW RA CABLE MOUNT 8 TERMINAL 1 PORT BUCCANEER BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PXPPAM12RAM08ASTPG9

Active

BULGIN LIMITED

CONN M12 CIRCULAR PIN 8 POS SCREW RA CABLE MOUNT 8 TERMINAL 1 PORT BUCCANEER BULK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXPPAM12RAM08ASTPG9

Applications	Medical, Industrial, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [custom]	0.315 in, 0.181 in
Cable Opening [custom]	4.6 mm, 8 mm
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	2 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-8
Termination	Screw
Voltage Rating	30 VDC

PXPPAM Series

Part	Connector Type	Primary Material	Shell Material	Shell Finish	Cable Opening [custom]	Cable Opening [custom]	Voltage Rating	Features	Ingress Protection	Contact Finish - Mating	Termination	Orientation	Shell Size - Insert	Applications	Backshell Material, Plating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Color	Current Rating (Amps)	Number of Positions	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]
BULGIN LIMITED PXPPAM12FBF03ASTPG9	Female Sockets Plug	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	250 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-3	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Phosphor Bronze	Black Silver	4 A
BULGIN LIMITED PXPPAM12RAM08ASTPG9	Male Pins Receptacle	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	30 VDC	Backshell	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-8	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line) Right Angle	-25 °C	80 C	Brass	Black Silver	2 A	8
BULGIN LIMITED PXPPAM12FBF08ASTPG9	Female Sockets Plug	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	30 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-8	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Phosphor Bronze	Black Silver	2 A	8
BULGIN LIMITED PXPPAM12RAM05ASTPG9	Male Pins Receptacle	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	60 VDC	Backshell	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-5	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line) Right Angle	-25 °C	80 C	Brass	Black Silver	4 A
BULGIN LIMITED PXPPAM08FBF04AST	Female Sockets Plug	Metal	Brass	Nickel			30 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	Screw	A	M8-4	Industrial	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Phosphor Bronze	Black Silver	3 A	4	0.138 in	3.5 mm	3 mm	0.118 in
BULGIN LIMITED PXPPAM08FBF03AST	Female Sockets Plug	Metal	Brass	Nickel			60 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	Screw	A	M8-3	Industrial	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Phosphor Bronze	Black Silver	3 A		0.138 in	3.5 mm	3 mm	0.118 in
BULGIN LIMITED PXPPAM12FBF04ASTPG9	Female Sockets Plug	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	250 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-4	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Phosphor Bronze	Black Silver	4 A	4
BULGIN LIMITED PXPPAM12FIM04ASTPG9	Male Pins Receptacle	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	250 VDC	Backshell	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-4	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Brass	Black Silver	4 A	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.98
Digikey	Bulk	1	$ 32.38
		10	$ 28.36
		25	$ 27.13
		50	$ 26.25
		100	$ 25.38
		250	$ 23.98

Description

General part information

PXPPAM Series

8 Position Circular Connector Receptacle, Male Pins Screw
