PXPPAM12FBF08ASTPG9

Active

BULGIN LIMITED

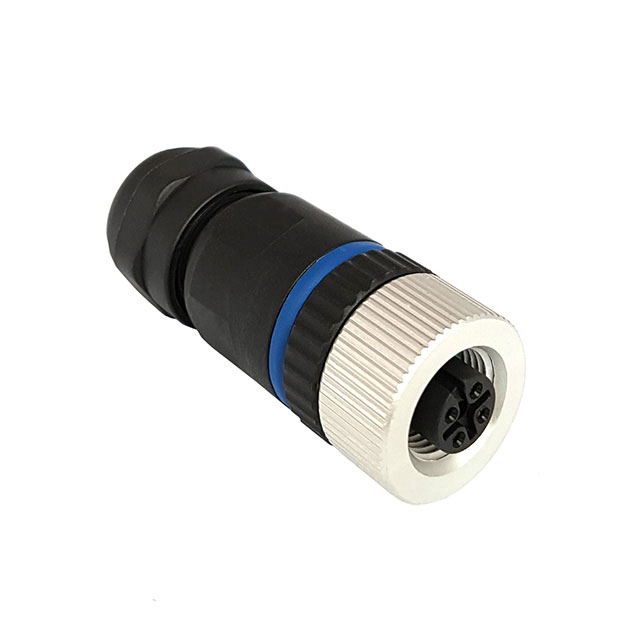

SENSOR CONNECTOR, BUCCANEER M12 SERIES, M12, RECEPTACLE, 8 CONTACTS, SCREW SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

PXPPAM12FBF08ASTPG9

Active

BULGIN LIMITED

SENSOR CONNECTOR, BUCCANEER M12 SERIES, M12, RECEPTACLE, 8 CONTACTS, SCREW SOCKET

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXPPAM12FBF08ASTPG9

Applications	Medical, Industrial, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [custom]	0.315 in, 0.181 in
Cable Opening [custom]	4.6 mm, 8 mm
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	2 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-8
Termination	Screw
Voltage Rating	30 VDC

PXPPAM Series

Part	Connector Type	Primary Material	Shell Material	Shell Finish	Cable Opening [custom]	Cable Opening [custom]	Voltage Rating	Features	Ingress Protection	Contact Finish - Mating	Termination	Orientation	Shell Size - Insert	Applications	Backshell Material, Plating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Color	Current Rating (Amps)	Number of Positions	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]
BULGIN LIMITED PXPPAM12FBF03ASTPG9	Female Sockets Plug	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	250 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-3	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Phosphor Bronze	Black Silver	4 A
BULGIN LIMITED PXPPAM12RAM08ASTPG9	Male Pins Receptacle	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	30 VDC	Backshell	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-8	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line) Right Angle	-25 °C	80 C	Brass	Black Silver	2 A	8
BULGIN LIMITED PXPPAM12FBF08ASTPG9	Female Sockets Plug	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	30 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-8	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Phosphor Bronze	Black Silver	2 A	8
BULGIN LIMITED PXPPAM12RAM05ASTPG9	Male Pins Receptacle	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	60 VDC	Backshell	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-5	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line) Right Angle	-25 °C	80 C	Brass	Black Silver	4 A
BULGIN LIMITED PXPPAM08FBF04AST	Female Sockets Plug	Metal	Brass	Nickel			30 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	Screw	A	M8-4	Industrial	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Phosphor Bronze	Black Silver	3 A	4	0.138 in	3.5 mm	3 mm	0.118 in
BULGIN LIMITED PXPPAM08FBF03AST	Female Sockets Plug	Metal	Brass	Nickel			60 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	Screw	A	M8-3	Industrial	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Phosphor Bronze	Black Silver	3 A		0.138 in	3.5 mm	3 mm	0.118 in
BULGIN LIMITED PXPPAM12FBF04ASTPG9	Female Sockets Plug	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	250 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-4	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Phosphor Bronze	Black Silver	4 A	4
BULGIN LIMITED PXPPAM12FIM04ASTPG9	Male Pins Receptacle	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	250 VDC	Backshell	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-4	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Brass	Black Silver	4 A	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.76
		10	$ 21.66

Description

General part information

PXPPAM Series

The M-series Buccaneer circular automation connectors from Bulgin provide an ideal connectivity solution for industrial automation technologies that require fast, secure and reliable connections with a high degree of environmental protection. Featuring a M-style threaded locking nut, Bulgin’s M-series offers an extensive choice of robust industry standard interconnect solutions for automation and control applications including M5 (waterproof), M8, M12, M16 and M23 variants. With A, B, D coded connector variants available throughout the range, Bulgin’s automation connectors are ideal for ensuring consistent and reliable actuator/sensor, fieldbus and Ethernet connections. Designed to decrease downtime and increase production efficiency, M-series provides reliable and uncompromised data, signal and power transmissions for industrial automation systems in harsh environments. These IP67 rated connectors range include field installable connectors, receptacles and overmoulded cable variants.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
