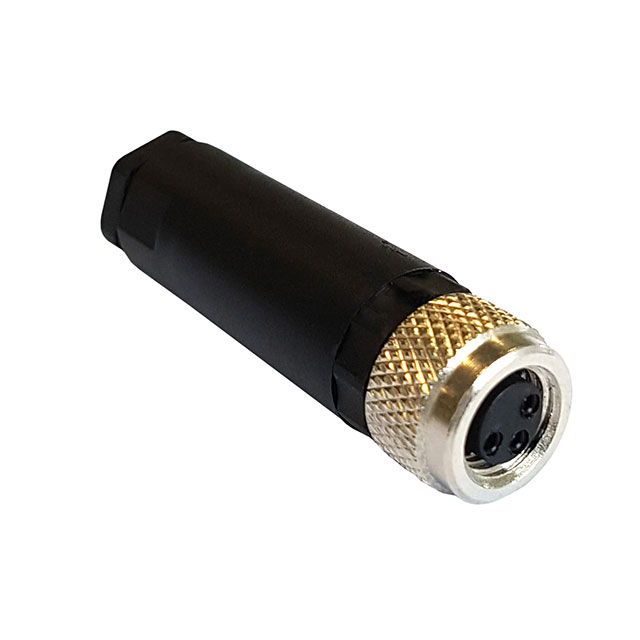

PXPPAM08FBF03AST

Active

BULGIN LIMITED

CONN PLUG FMALE 3POS GOLD SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PXPPAM08FBF03AST

Active

BULGIN LIMITED

CONN PLUG FMALE 3POS GOLD SCREW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXPPAM08FBF03AST

Applications	Industrial
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.138 in
Cable Opening [Max] [diameter]	3.5 mm
Cable Opening [Min] [diameter]	3 mm
Cable Opening [Min] [diameter]	0.118 in
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	3 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M8-3
Termination	Screw
Voltage Rating	60 VDC

PXPPAM Series

Part	Connector Type	Primary Material	Shell Material	Shell Finish	Cable Opening [custom]	Cable Opening [custom]	Voltage Rating	Features	Ingress Protection	Contact Finish - Mating	Termination	Orientation	Shell Size - Insert	Applications	Backshell Material, Plating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Color	Current Rating (Amps)	Number of Positions	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]
BULGIN LIMITED PXPPAM12FBF03ASTPG9	Female Sockets Plug	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	250 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-3	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Phosphor Bronze	Black Silver	4 A
BULGIN LIMITED PXPPAM12RAM08ASTPG9	Male Pins Receptacle	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	30 VDC	Backshell	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-8	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line) Right Angle	-25 °C	80 C	Brass	Black Silver	2 A	8
BULGIN LIMITED PXPPAM12FBF08ASTPG9	Female Sockets Plug	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	30 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-8	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Phosphor Bronze	Black Silver	2 A	8
BULGIN LIMITED PXPPAM12RAM05ASTPG9	Male Pins Receptacle	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	60 VDC	Backshell	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-5	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line) Right Angle	-25 °C	80 C	Brass	Black Silver	4 A
BULGIN LIMITED PXPPAM08FBF04AST	Female Sockets Plug	Metal	Brass	Nickel			30 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	Screw	A	M8-4	Industrial	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Phosphor Bronze	Black Silver	3 A	4	0.138 in	3.5 mm	3 mm	0.118 in
BULGIN LIMITED PXPPAM08FBF03AST	Female Sockets Plug	Metal	Brass	Nickel			60 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	Screw	A	M8-3	Industrial	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Phosphor Bronze	Black Silver	3 A		0.138 in	3.5 mm	3 mm	0.118 in
BULGIN LIMITED PXPPAM12FBF04ASTPG9	Female Sockets Plug	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	250 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-4	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Phosphor Bronze	Black Silver	4 A	4
BULGIN LIMITED PXPPAM12FIM04ASTPG9	Male Pins Receptacle	Metal	Brass	Nickel	0.181 in 0.315 in	4.6 mm 8 mm	250 VDC	Backshell	IP67 - Dust Tight Waterproof	Gold	Screw	A	M12-4	Industrial Instrumentation Medical	Nylon Polyamide (PA)	Free Hanging (In-Line)	-25 °C	80 C	Brass	Black Silver	4 A	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.64
		10	$ 20.70
		25	$ 19.80
		50	$ 19.16
		100	$ 18.53
		250	$ 17.50
		500	$ 16.99

Description

General part information

PXPPAM Series

3 Position Circular Connector Plug, Female Sockets Screw
