09181509622

Active

HARTING Technology Group

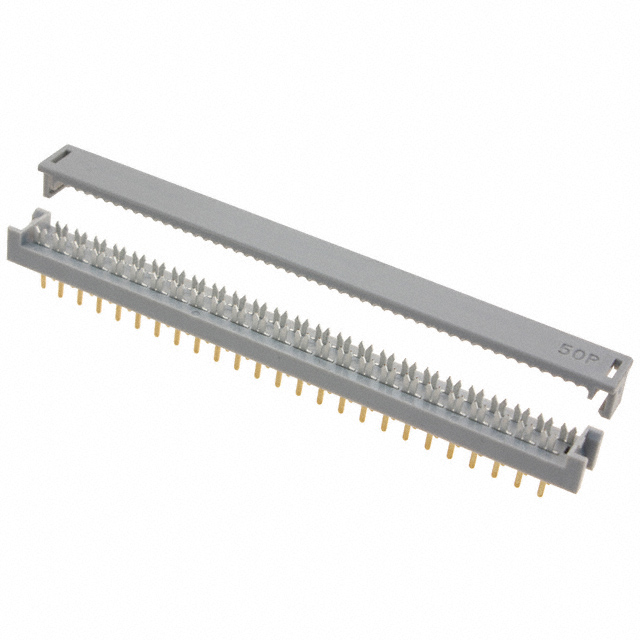

BOARD CONNECTOR, 50 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING, GRAY INSULATOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Drawing EN +1

09181509622

Active

HARTING Technology Group

BOARD CONNECTOR, 50 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING, GRAY INSULATOR

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09181509622

Board-Side Pitch	0.1 in
Board-Side Pitch	2.54 mm
Cable Termination	IDC
Connector Type	Ribbon Cable, DIP Header
Features	Feed Through
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

sek-low-profile Series

Part	Mounting Type	Number of Rows	Number of Positions Loaded	Connector Type	Cable Termination	Number of Positions	Board-Side Pitch	Board-Side Pitch	Features	Row Spacing [x]	Row Spacing	Contact Type	Pitch - Mating	Pitch - Mating	Termination	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [custom]	Insulation Height [custom]	Contact Shape	Contact Finish - Post	Insulation Color	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Material	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Shrouding	Contact Length - Mating [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions
HARTING Technology Group 09181509622	Through Hole	2	All	DIP Header Ribbon Cable	IDC	50	0.1 in	2.54 mm	Feed Through	0.1 in	2.54 mm
HARTING Technology Group 09185307324	Through Hole	2	All	Header		30			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C	0.35 in	8.89 mm	Square	Tin	Gray	0.242 in	6.15 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.114 in	2.9 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall
HARTING Technology Group 09195406324	Through Hole	2	All	Header		40			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder		-55 °C	125 °C	0.35 in	8.89 mm	Square	Tin	Beige		6.1 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	0.114 in	2.9 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	0.24 in
HARTING Technology Group 09185607323	Through Hole Right Angle	2	All	Header		60			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C			Square		Gray	0.242 in	6.15 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.114 in	2.9 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall		0.366 in	9.3 mm
HARTING Technology Group 09185105329	Through Hole	2	All	Header		10			Keying Slot			Male Pin	0.1 in	2.54 mm	Press-Fit Solder	Gold			0.35 in	8.89 mm	Square	Tin	Gray		6.1 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.217 in	5.51 mm	Push-Pull	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	0.24 in			30 Áin	0.76 Ám
HARTING Technology Group 09181309622	Through Hole	2	All	DIP Header Ribbon Cable	IDC	30	0.1 in	2.54 mm	Feed Through	0.1 in	2.54 mm
HARTING Technology Group 09185147323	Through Hole Right Angle	2	All	Header		14			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C			Square		Gray	0.242 in	6.15 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.114 in	2.9 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall		0.366 in	9.3 mm
HARTING Technology Group 09185165324	Through Hole	2	All	Header					Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C	0.35 in	8.89 mm	Square	Tin	Gray	0.242 in	6.15 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.114 in	2.9 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall				30 Áin	0.76 Ám	16
HARTING Technology Group 09185205322	Through Hole	2	All	Header		20			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C	0.35 in	8.89 mm	Square	Tin	Gray		6.1 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.177 in	4.5 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	0.24 in			30 Áin	0.76 Ám
HARTING Technology Group 09185645322	Through Hole	2	All	Header		64			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C	0.35 in	8.89 mm	Square	Tin	Gray		6.1 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.177 in	4.5 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	0.24 in			30 Áin	0.76 Ám
