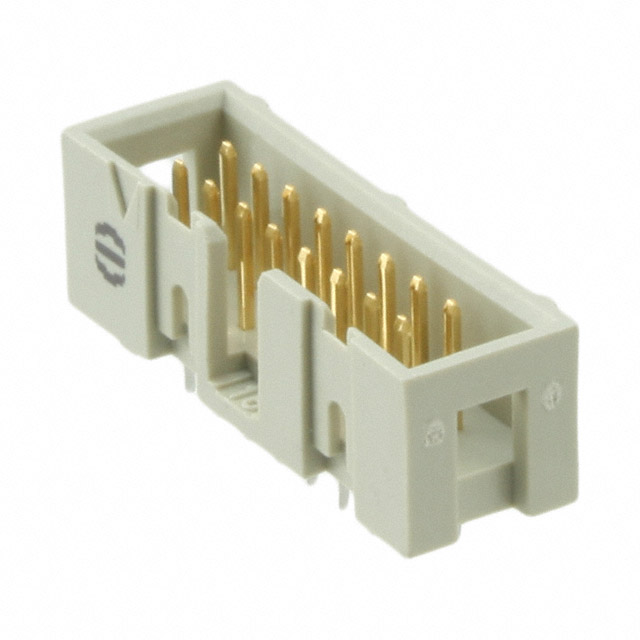

HEADER CONNECTOR,PCB MOUNT,RECEPT,16 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet

09185165324

Active

HARTING Technology Group

HEADER CONNECTOR,PCB MOUNT,RECEPT,16 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09185165324

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	0.242 in
Contact Length - Mating	6.15 mm
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Keying Slot
Insulation Color	Gray
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

sek-low-profile Series

Part	Mounting Type	Number of Rows	Number of Positions Loaded	Connector Type	Cable Termination	Number of Positions	Board-Side Pitch	Board-Side Pitch	Features	Row Spacing [x]	Row Spacing	Contact Type	Pitch - Mating	Pitch - Mating	Termination	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [custom]	Insulation Height [custom]	Contact Shape	Contact Finish - Post	Insulation Color	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Material	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Shrouding	Contact Length - Mating [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions
HARTING Technology Group 09181509622	Through Hole	2	All	DIP Header Ribbon Cable	IDC	50	0.1 in	2.54 mm	Feed Through	0.1 in	2.54 mm
HARTING Technology Group 09185307324	Through Hole	2	All	Header		30			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C	0.35 in	8.89 mm	Square	Tin	Gray	0.242 in	6.15 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.114 in	2.9 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall
HARTING Technology Group 09195406324	Through Hole	2	All	Header		40			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder		-55 °C	125 °C	0.35 in	8.89 mm	Square	Tin	Beige		6.1 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	0.114 in	2.9 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	0.24 in
HARTING Technology Group 09185607323	Through Hole Right Angle	2	All	Header		60			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C			Square		Gray	0.242 in	6.15 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.114 in	2.9 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall		0.366 in	9.3 mm
HARTING Technology Group 09185105329	Through Hole	2	All	Header		10			Keying Slot			Male Pin	0.1 in	2.54 mm	Press-Fit Solder	Gold			0.35 in	8.89 mm	Square	Tin	Gray		6.1 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.217 in	5.51 mm	Push-Pull	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	0.24 in			30 Áin	0.76 Ám
HARTING Technology Group 09181309622	Through Hole	2	All	DIP Header Ribbon Cable	IDC	30	0.1 in	2.54 mm	Feed Through	0.1 in	2.54 mm
HARTING Technology Group 09185147323	Through Hole Right Angle	2	All	Header		14			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C			Square		Gray	0.242 in	6.15 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.114 in	2.9 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall		0.366 in	9.3 mm
HARTING Technology Group 09185165324	Through Hole	2	All	Header					Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C	0.35 in	8.89 mm	Square	Tin	Gray	0.242 in	6.15 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.114 in	2.9 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall				30 Áin	0.76 Ám	16
HARTING Technology Group 09185205322	Through Hole	2	All	Header		20			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C	0.35 in	8.89 mm	Square	Tin	Gray		6.1 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.177 in	4.5 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	0.24 in			30 Áin	0.76 Ám
HARTING Technology Group 09185645322	Through Hole	2	All	Header		64			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C	0.35 in	8.89 mm	Square	Tin	Gray		6.1 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.177 in	4.5 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	0.24 in			30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.62
		10	$ 2.28
		100	$ 2.04
		500	$ 1.70
		1000	$ 1.45
		5000	$ 1.29
Newark	Each	100	$ 2.43
		250	$ 2.13
		500	$ 2.07
		1000	$ 1.76
TME	N/A	100	$ 2.11
		500	$ 1.81

Description

General part information

sek-low-profile Series

Connector Header Through Hole 16 position 0.100" (2.54mm)
