09185147323

Active

HARTING Technology Group

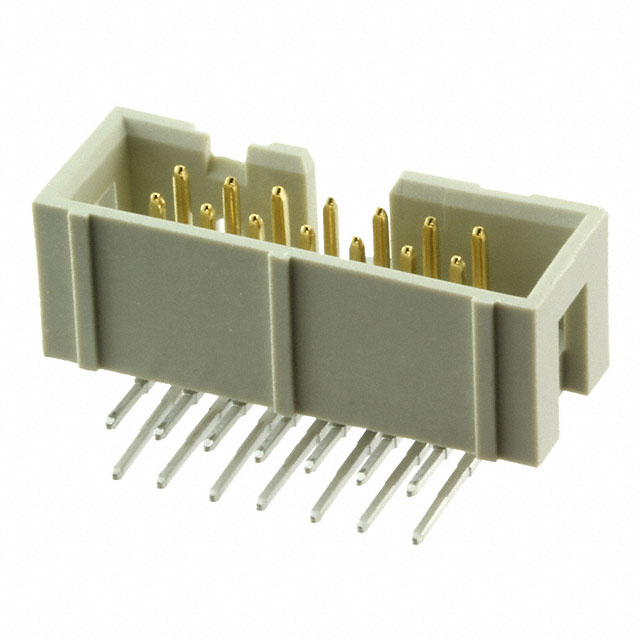

BOARD EURO CONNECTOR, 14 CONTACT(S), 2 ROW(S), MALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, BEIGE INSULATOR, RECEPTACLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSEK Series 6-64 Contacts Catalog Datasheet

09185147323

Active

HARTING Technology Group

BOARD EURO CONNECTOR, 14 CONTACT(S), 2 ROW(S), MALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, BEIGE INSULATOR, RECEPTACLE,

Deep-Dive with AI

DocumentsSEK Series 6-64 Contacts Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09185147323

Connector Type	Header
Contact Finish - Mating	Gold
Contact Length - Mating	0.242 in
Contact Length - Mating	6.15 mm
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Keying Slot
Insulation Color	Gray
Insulation Height	0.366 in
Insulation Height	9.3 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

sek-low-profile Series

Part	Mounting Type	Number of Rows	Number of Positions Loaded	Connector Type	Cable Termination	Number of Positions	Board-Side Pitch	Board-Side Pitch	Features	Row Spacing [x]	Row Spacing	Contact Type	Pitch - Mating	Pitch - Mating	Termination	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [custom]	Insulation Height [custom]	Contact Shape	Contact Finish - Post	Insulation Color	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Material	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Shrouding	Contact Length - Mating [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions
HARTING Technology Group 09181509622	Through Hole	2	All	DIP Header Ribbon Cable	IDC	50	0.1 in	2.54 mm	Feed Through	0.1 in	2.54 mm
HARTING Technology Group 09185307324	Through Hole	2	All	Header		30			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C	0.35 in	8.89 mm	Square	Tin	Gray	0.242 in	6.15 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.114 in	2.9 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall
HARTING Technology Group 09195406324	Through Hole	2	All	Header		40			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder		-55 °C	125 °C	0.35 in	8.89 mm	Square	Tin	Beige		6.1 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	0.114 in	2.9 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	0.24 in
HARTING Technology Group 09185607323	Through Hole Right Angle	2	All	Header		60			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C			Square		Gray	0.242 in	6.15 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.114 in	2.9 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall		0.366 in	9.3 mm
HARTING Technology Group 09185105329	Through Hole	2	All	Header		10			Keying Slot			Male Pin	0.1 in	2.54 mm	Press-Fit Solder	Gold			0.35 in	8.89 mm	Square	Tin	Gray		6.1 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.217 in	5.51 mm	Push-Pull	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	0.24 in			30 Áin	0.76 Ám
HARTING Technology Group 09181309622	Through Hole	2	All	DIP Header Ribbon Cable	IDC	30	0.1 in	2.54 mm	Feed Through	0.1 in	2.54 mm
HARTING Technology Group 09185147323	Through Hole Right Angle	2	All	Header		14			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C			Square		Gray	0.242 in	6.15 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.114 in	2.9 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall		0.366 in	9.3 mm
HARTING Technology Group 09185165324	Through Hole	2	All	Header					Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C	0.35 in	8.89 mm	Square	Tin	Gray	0.242 in	6.15 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.114 in	2.9 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall				30 Áin	0.76 Ám	16
HARTING Technology Group 09185205322	Through Hole	2	All	Header		20			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C	0.35 in	8.89 mm	Square	Tin	Gray		6.1 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.177 in	4.5 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	0.24 in			30 Áin	0.76 Ám
HARTING Technology Group 09185645322	Through Hole	2	All	Header		64			Keying Slot			Male Pin	0.1 in	2.54 mm	Solder	Gold	-55 °C	125 °C	0.35 in	8.89 mm	Square	Tin	Gray		6.1 mm	Polybutylene Terephthalate (PBT) Glass Filled	0.177 in	4.5 mm	Latch Holder	Copper Alloy	Board to Cable/Wire	2.54 mm	0.1 in	UL94 V-0	Shrouded - 4 Wall	0.24 in			30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.25
		10	$ 2.25
		80	$ 1.69
		440	$ 1.38
		945	$ 1.27
		4900	$ 1.08
TME	N/A	100	$ 1.45
		500	$ 1.24

Description

General part information

sek-low-profile Series

Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm)

Documents

Technical documentation and resources

SEK Series 6-64 Contacts Catalog

Datasheet
