HEAVY DUTY CONNECTOR, HAN-QUINTAX® PIN MODULE, LESS CONTACTS, HAN-MODULAR SERIES, MODULE, PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09140023001

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-QUINTAX® PIN MODULE, LESS CONTACTS, HAN-MODULAR SERIES, MODULE, PLUG

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09140023001

Accessory Type	Insert Frame
For Use With/Related Products	Han-Quintax® Modules
Specifications	Male

09140023 Series

Part	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Type	Housing Material	Number of Positions	Connector Type	Color	Current Rating (Amps)	Termination Style	Voltage Rating	Specifications	Accessory Type	For Use With/Related Products
HARTING Technology Group 09140023021	Male	125 °C	-40 °C	UL94 V-0	Han®	Polytetrafluoroethylene (PTFE)	2	Module without Contacts	Gray	16 A	Crimp
HARTING Technology Group 09140023502	Female	85 °C	-40 °C	UL94 V-0		Polycarbonate (PC)	2	Module Pneumatic	Blue		Crimp
HARTING Technology Group 09140023025	Male	125 °C	-40 °C	UL94 V-0	Han®	Polycarbonate (PC) Polytetrafluoroethylene (PTFE)	2	Module without Contacts	Gray	16 A	Crimp	2.5 kV
HARTING Technology Group 09140023003	Male	125 °C	-40 °C	UL94 V-0	Han® C	Polycarbonate (PC)	2	Module without Contacts	Gray	31 A	Crimp	1000 VDC
HARTING Technology Group 09140023123	Female	125 °C	-40 °C	UL94 V-0	Han® C	Polytetrafluoroethylene (PTFE)	2	Module without Contacts	Gray	40 A	Crimp
HARTING Technology Group 09140023002	Male	125 °C	-40 °C	UL94 V-0	Han® C	Polycarbonate (PC)	2	Module without Contacts	Gray	40 A	Crimp	600 V
HARTING Technology Group 09140023141	Female	125 °C	-40 °C	UL94 V-0	Han-Modular®	Polycarbonate (PC)	2	Module without Contacts	Gray	70 A	Crimp	1000 VDC
HARTING Technology Group 09140023161	Female	85 °C	-40 °C	UL94 V-0		Polycarbonate (PC)	2	Module without Contacts	Gray
HARTING Technology Group 09140023121	Female	125 °C	-40 °C	UL94 V-0	Han®	Polytetrafluoroethylene (PTFE)	2	Module without Contacts	Gray	16 A	Crimp
HARTING Technology Group 09140023001													Male	Insert Frame	Han-Quintax® Modules

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 16.25
		10	$ 11.77
		25	$ 10.48
		50	$ 9.66
		100	$ 8.93
		250	$ 8.11
		500	$ 7.58
		1000	$ 7.11
Newark	Each	1	$ 10.79
		10	$ 9.85
		25	$ 9.37
		50	$ 9.22
		100	$ 9.06
		250	$ 8.22

Description

General part information

09140023 Series

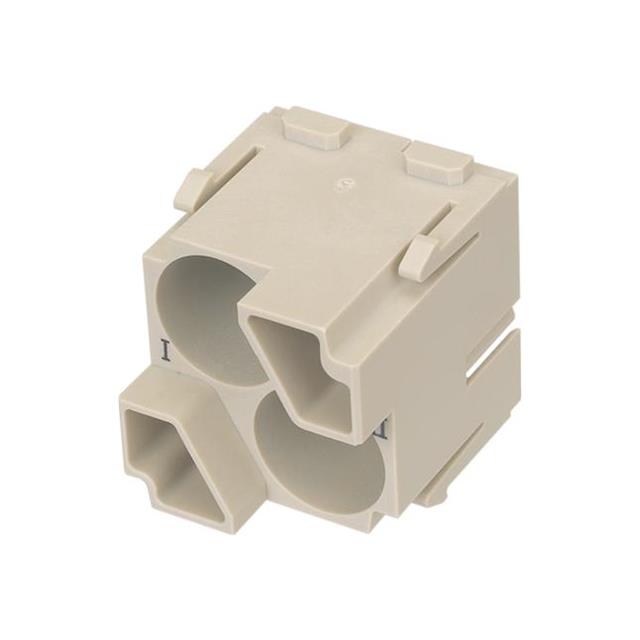

The 09140023001 is a 2-contact Han-Quintax module, male. Made of polycarbonate, RAL 7032 (light grey) insert. Crimp termination.
