09140023123

Active

HARTING Technology Group

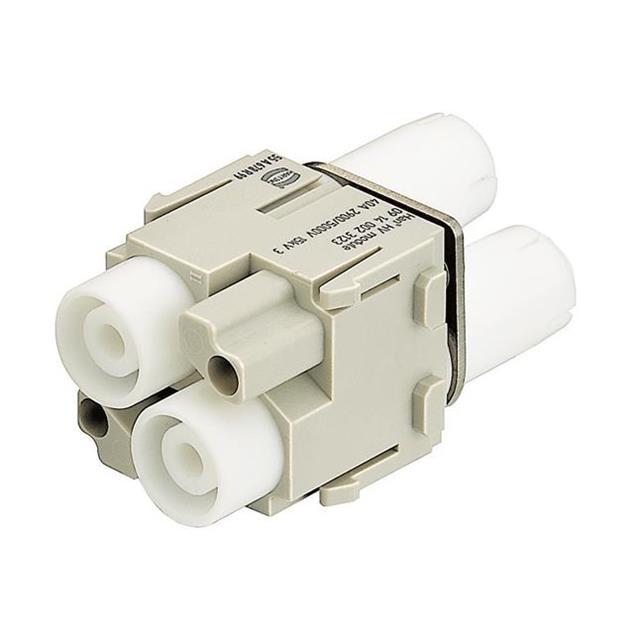

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, MODULE, 2 CONTACTS, RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09140023123

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, MODULE, 2 CONTACTS, RECEPTACLE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09140023123

Color	Gray
Connector Type	Module without Contacts
Contact Type	Han® C
Current Rating (Amps)	40 A
Gender	Female
Housing Material	Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp

09140023 Series

Part	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Type	Housing Material	Number of Positions	Connector Type	Color	Current Rating (Amps)	Termination Style	Voltage Rating	Specifications	Accessory Type	For Use With/Related Products
HARTING Technology Group 09140023021	Male	125 °C	-40 °C	UL94 V-0	Han®	Polytetrafluoroethylene (PTFE)	2	Module without Contacts	Gray	16 A	Crimp
HARTING Technology Group 09140023502	Female	85 °C	-40 °C	UL94 V-0		Polycarbonate (PC)	2	Module Pneumatic	Blue		Crimp
HARTING Technology Group 09140023025	Male	125 °C	-40 °C	UL94 V-0	Han®	Polycarbonate (PC) Polytetrafluoroethylene (PTFE)	2	Module without Contacts	Gray	16 A	Crimp	2.5 kV
HARTING Technology Group 09140023003	Male	125 °C	-40 °C	UL94 V-0	Han® C	Polycarbonate (PC)	2	Module without Contacts	Gray	31 A	Crimp	1000 VDC
HARTING Technology Group 09140023123	Female	125 °C	-40 °C	UL94 V-0	Han® C	Polytetrafluoroethylene (PTFE)	2	Module without Contacts	Gray	40 A	Crimp
HARTING Technology Group 09140023002	Male	125 °C	-40 °C	UL94 V-0	Han® C	Polycarbonate (PC)	2	Module without Contacts	Gray	40 A	Crimp	600 V
HARTING Technology Group 09140023141	Female	125 °C	-40 °C	UL94 V-0	Han-Modular®	Polycarbonate (PC)	2	Module without Contacts	Gray	70 A	Crimp	1000 VDC
HARTING Technology Group 09140023161	Female	85 °C	-40 °C	UL94 V-0		Polycarbonate (PC)	2	Module without Contacts	Gray
HARTING Technology Group 09140023121	Female	125 °C	-40 °C	UL94 V-0	Han®	Polytetrafluoroethylene (PTFE)	2	Module without Contacts	Gray	16 A	Crimp
HARTING Technology Group 09140023001													Male	Insert Frame	Han-Quintax® Modules

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 216.77
		10	$ 166.98
		25	$ 152.48
		50	$ 143.04
Newark	Each	1	$ 151.90
		5	$ 143.69
		10	$ 136.32

Description

General part information

09140023 Series

Female Module without Contacts Gray 2 Position Crimp

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN
