09140023025

Active

HARTING Technology Group

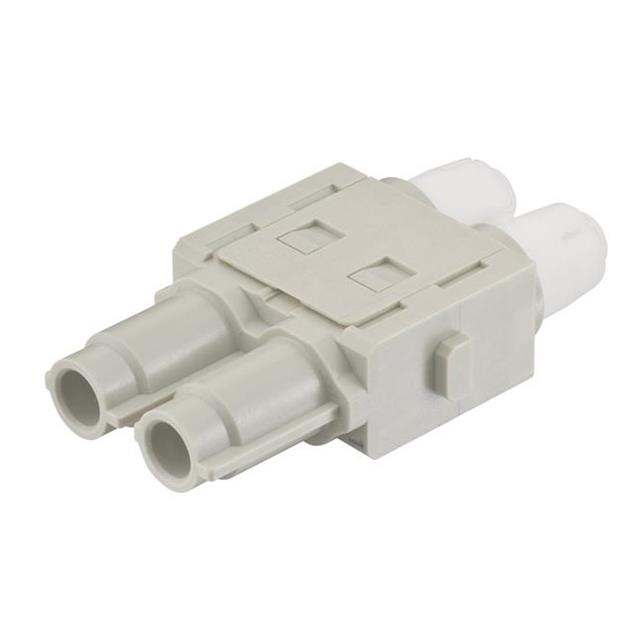

MODULE MALE 2POS CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09140023025

Active

HARTING Technology Group

MODULE MALE 2POS CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09140023025

Color	Gray
Connector Type	Module without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polytetrafluoroethylene (PTFE), Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	2.5 kV

09140023 Series

Part	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Type	Housing Material	Number of Positions	Connector Type	Color	Current Rating (Amps)	Termination Style	Voltage Rating	Specifications	Accessory Type	For Use With/Related Products
HARTING Technology Group 09140023021	Male	125 °C	-40 °C	UL94 V-0	Han®	Polytetrafluoroethylene (PTFE)	2	Module without Contacts	Gray	16 A	Crimp
HARTING Technology Group 09140023502	Female	85 °C	-40 °C	UL94 V-0		Polycarbonate (PC)	2	Module Pneumatic	Blue		Crimp
HARTING Technology Group 09140023025	Male	125 °C	-40 °C	UL94 V-0	Han®	Polycarbonate (PC) Polytetrafluoroethylene (PTFE)	2	Module without Contacts	Gray	16 A	Crimp	2.5 kV
HARTING Technology Group 09140023003	Male	125 °C	-40 °C	UL94 V-0	Han® C	Polycarbonate (PC)	2	Module without Contacts	Gray	31 A	Crimp	1000 VDC
HARTING Technology Group 09140023123	Female	125 °C	-40 °C	UL94 V-0	Han® C	Polytetrafluoroethylene (PTFE)	2	Module without Contacts	Gray	40 A	Crimp
HARTING Technology Group 09140023002	Male	125 °C	-40 °C	UL94 V-0	Han® C	Polycarbonate (PC)	2	Module without Contacts	Gray	40 A	Crimp	600 V
HARTING Technology Group 09140023141	Female	125 °C	-40 °C	UL94 V-0	Han-Modular®	Polycarbonate (PC)	2	Module without Contacts	Gray	70 A	Crimp	1000 VDC
HARTING Technology Group 09140023161	Female	85 °C	-40 °C	UL94 V-0		Polycarbonate (PC)	2	Module without Contacts	Gray
HARTING Technology Group 09140023121	Female	125 °C	-40 °C	UL94 V-0	Han®	Polytetrafluoroethylene (PTFE)	2	Module without Contacts	Gray	16 A	Crimp
HARTING Technology Group 09140023001													Male	Insert Frame	Han-Quintax® Modules

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 151.87
		10	$ 116.01
		25	$ 105.59
		50	$ 98.82
		100	$ 92.86

Description

General part information

09140023 Series

Male Module without Contacts Gray 2 Position Crimp

Documents

Technical documentation and resources
