TAA752A5501-080

Active

TE Connectivity Raychem Cable Protection

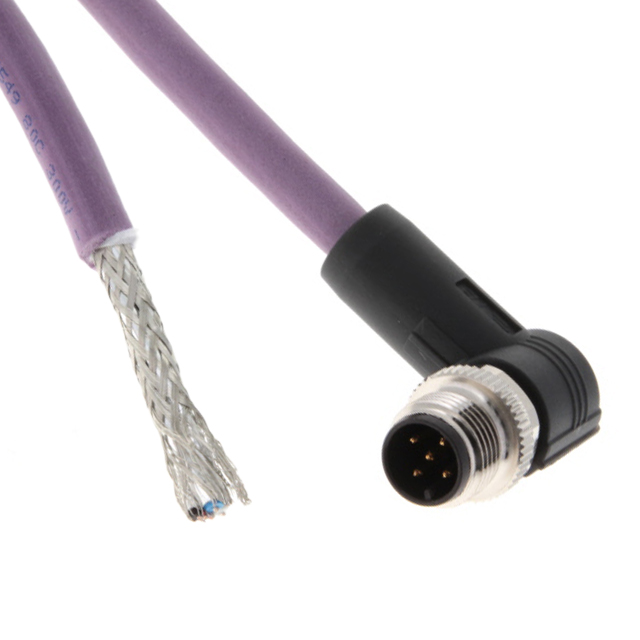

SENSOR CABLE, 5P, DEVICENET, 90° M12 PLUG, FREE END, 5 POSITIONS, 8 M, 26.2 FT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM8/M12 Cable Aassemblies Catalog Datasheet +7

TAA752A5501-080

Active

TE Connectivity Raychem Cable Protection

SENSOR CABLE, 5P, DEVICENET, 90° M12 PLUG, FREE END, 5 POSITIONS, 8 M, 26.2 FT

Deep-Dive with AI

DocumentsM8/M12 Cable Aassemblies Catalog Datasheet +7

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TAA752A5501-080

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Violet
Ingress Protection	IP67 - Dust Tight, Waterproof
Length	26.2 '
Length	8 m
Shielding	Shielded
Usage	Industrial Environments

TAA75 Series

Part	1st Connector Orientation	Cable Type	Ingress Protection	1st Connector Number of Positions	1st Connector Mounting Type	2nd Connector Type	1st Connector Shell Size - Insert	1st Connector Number of Positions Loaded	1st Connector Type	Assembly Configuration	1st Connector Gender	Color	Length [x]	Length [x]	Cable Material	Shielding	Usage	Length	Length	2nd Connector Gender	2nd Connector Number of Positions	2nd Connector Mounting Type	2nd Connector Shell Size - Insert	2nd Connector Number of Positions Loaded
TE Connectivity Raychem Cable Protection TAA751A1611-002	A	Round	IP67 - Dust Tight Waterproof	5	Free Hanging (In-Line)	Wire Leads	M12	All	Receptacle	Standard	Male Pins	Gray	1 m	3.28 ft	Polyvinyl Chloride (PVC)	Shielded	Industrial Environments
TE Connectivity Raychem Cable Protection TAA75AA1611-060	A	Round	IP67 - Dust Tight Waterproof	5	Free Hanging (In-Line)	Plug	M12	All	Receptacle Right Angle	Standard	Male Pins	Gray			Polyvinyl Chloride (PVC)	Shielded	Industrial Environments	19.69 ft	6 m	Female Sockets	5	Free Hanging (In-Line)	M12	All
TE Connectivity Raychem Cable Protection TAA75AA5501-080	A	Round	IP67 - Dust Tight Waterproof	5	Free Hanging (In-Line)	Plug	M12	All	Receptacle Right Angle	Standard	Male Pins	Violet			Polyurethane (PUR)	Shielded	Industrial Environments	26.2 '	8 m	Female Sockets	5	Free Hanging (In-Line)	M12	All
TE Connectivity Raychem Cable Protection TAA752A5501-080	A	Round	IP67 - Dust Tight Waterproof	5	Free Hanging (In-Line)	Wire Leads	M12	All	Receptacle Right Angle	Standard	Male Pins	Violet			Polyurethane (PUR)	Shielded	Industrial Environments	26.2 '	8 m
TE Connectivity Raychem Cable Protection TAA755A1611-001	A	Round	IP68 IP69K	5	Free Hanging (In-Line)	Plug	M12	All	Receptacle	Standard	Male Pins	Gray	500 mm	1.64 ft	Polyvinyl Chloride (PVC)	Shielded	Industrial Environments			Female Sockets	5	Free Hanging (In-Line)	M12	All
TE Connectivity Raychem Cable Protection TAA755A5501-002	A	Round	IP68 IP69K	5	Free Hanging (In-Line)	Plug	M12	All	Receptacle	Standard	Male Pins	Violet	1 m	3.28 ft	Polyurethane (PUR)	Shielded	Industrial Environments			Female Sockets	5	Free Hanging (In-Line)	M12	All
TE Connectivity Raychem Cable Protection TAA751A1611-001	A	Round	IP67 - Dust Tight Waterproof	5	Free Hanging (In-Line)	Wire Leads	M12	All	Receptacle	Standard	Male Pins	Gray	500 mm	1.64 ft	Polyvinyl Chloride (PVC)	Shielded	Industrial Environments
TE Connectivity Raychem Cable Protection TAA754A1611-002	A	Round		5	Free Hanging (In-Line)	Wire Leads	M12	All	Plug Right Angle	Standard	Female Sockets	Gray	1 m	3.28 ft	Polyvinyl Chloride (PVC)	Shielded
TE Connectivity Raychem Cable Protection TAA75AA5501-001	A	Round	IP67/IP68 - Dust Tight Waterproof NEMA 1 3 4 6 6P	5	Free Hanging (In-Line)	Plug	M12	All	Receptacle Right Angle	Standard	Male Pins	Violet	500 mm	1.64 ft	Polyurethane (PUR)	Shielded	Cat5e Industrial Environments PoE+			Female Sockets	5	Free Hanging (In-Line)	M12	All
TE Connectivity Raychem Cable Protection TAA751A5501-060	A	Round	IP67 - Dust Tight Waterproof	5	Free Hanging (In-Line)	Wire Leads	M12	All	Receptacle	Standard	Male Pins	Violet			Polyurethane (PUR)	Shielded	Industrial Environments	19.69 ft	6 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 72.39
		10	$ 61.53
		25	$ 57.68
		50	$ 54.93
		100	$ 52.31
Newark	Each	10	$ 65.44
		25	$ 61.35
		50	$ 56.86
		100	$ 53.58
		250	$ 51.13
Sager	N/A	1	$ 62.92
		6	$ 60.15
		12	$ 58.43
		24	$ 56.81

Description

General part information

TAA75 Series

M12 Pigtail Cable Assembly, 5 Position, 8 m, Industrial Fieldbus, DeviceNet, A Code, M12 Plug End A, Shielded, Single Ended, PA66+25GF
