TAA754A1611-002

Active

TE Connectivity Raychem Cable Protection

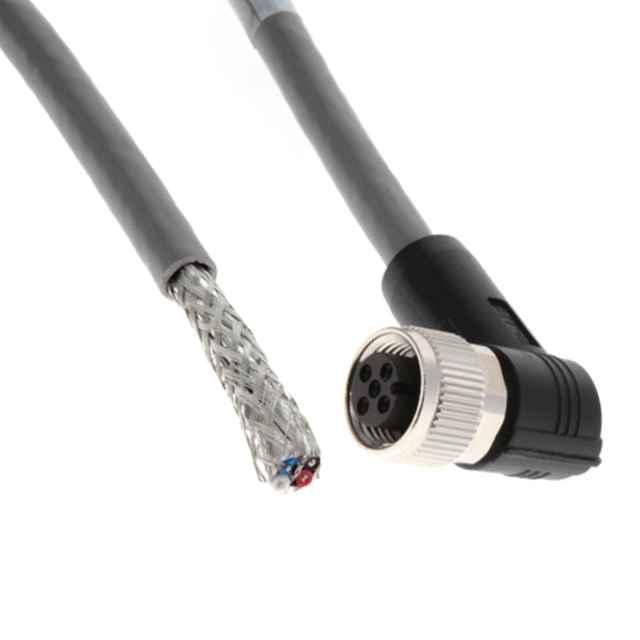

SENSOR CORD, 5P M12 RCPT-FREE END, 3.3' ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM8/M12 Cable Aassemblies Catalog Technical Data Sheet EN +5

TAA754A1611-002

Active

TE Connectivity Raychem Cable Protection

SENSOR CORD, 5P M12 RCPT-FREE END, 3.3' ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM8/M12 Cable Aassemblies Catalog Technical Data Sheet EN +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TAA754A1611-002

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Gray
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Shielded

TAA75 Series

Part	1st Connector Orientation	Cable Type	Ingress Protection	1st Connector Number of Positions	1st Connector Mounting Type	2nd Connector Type	1st Connector Shell Size - Insert	1st Connector Number of Positions Loaded	1st Connector Type	Assembly Configuration	1st Connector Gender	Color	Length [x]	Length [x]	Cable Material	Shielding	Usage	Length	Length	2nd Connector Gender	2nd Connector Number of Positions	2nd Connector Mounting Type	2nd Connector Shell Size - Insert	2nd Connector Number of Positions Loaded
TE Connectivity Raychem Cable Protection TAA751A1611-002	A	Round	IP67 - Dust Tight Waterproof	5	Free Hanging (In-Line)	Wire Leads	M12	All	Receptacle	Standard	Male Pins	Gray	1 m	3.28 ft	Polyvinyl Chloride (PVC)	Shielded	Industrial Environments
TE Connectivity Raychem Cable Protection TAA75AA1611-060	A	Round	IP67 - Dust Tight Waterproof	5	Free Hanging (In-Line)	Plug	M12	All	Receptacle Right Angle	Standard	Male Pins	Gray			Polyvinyl Chloride (PVC)	Shielded	Industrial Environments	19.69 ft	6 m	Female Sockets	5	Free Hanging (In-Line)	M12	All
TE Connectivity Raychem Cable Protection TAA75AA5501-080	A	Round	IP67 - Dust Tight Waterproof	5	Free Hanging (In-Line)	Plug	M12	All	Receptacle Right Angle	Standard	Male Pins	Violet			Polyurethane (PUR)	Shielded	Industrial Environments	26.2 '	8 m	Female Sockets	5	Free Hanging (In-Line)	M12	All
TE Connectivity Raychem Cable Protection TAA752A5501-080	A	Round	IP67 - Dust Tight Waterproof	5	Free Hanging (In-Line)	Wire Leads	M12	All	Receptacle Right Angle	Standard	Male Pins	Violet			Polyurethane (PUR)	Shielded	Industrial Environments	26.2 '	8 m
TE Connectivity Raychem Cable Protection TAA755A1611-001	A	Round	IP68 IP69K	5	Free Hanging (In-Line)	Plug	M12	All	Receptacle	Standard	Male Pins	Gray	500 mm	1.64 ft	Polyvinyl Chloride (PVC)	Shielded	Industrial Environments			Female Sockets	5	Free Hanging (In-Line)	M12	All
TE Connectivity Raychem Cable Protection TAA755A5501-002	A	Round	IP68 IP69K	5	Free Hanging (In-Line)	Plug	M12	All	Receptacle	Standard	Male Pins	Violet	1 m	3.28 ft	Polyurethane (PUR)	Shielded	Industrial Environments			Female Sockets	5	Free Hanging (In-Line)	M12	All
TE Connectivity Raychem Cable Protection TAA751A1611-001	A	Round	IP67 - Dust Tight Waterproof	5	Free Hanging (In-Line)	Wire Leads	M12	All	Receptacle	Standard	Male Pins	Gray	500 mm	1.64 ft	Polyvinyl Chloride (PVC)	Shielded	Industrial Environments
TE Connectivity Raychem Cable Protection TAA754A1611-002	A	Round		5	Free Hanging (In-Line)	Wire Leads	M12	All	Plug Right Angle	Standard	Female Sockets	Gray	1 m	3.28 ft	Polyvinyl Chloride (PVC)	Shielded
TE Connectivity Raychem Cable Protection TAA75AA5501-001	A	Round	IP67/IP68 - Dust Tight Waterproof NEMA 1 3 4 6 6P	5	Free Hanging (In-Line)	Plug	M12	All	Receptacle Right Angle	Standard	Male Pins	Violet	500 mm	1.64 ft	Polyurethane (PUR)	Shielded	Cat5e Industrial Environments PoE+			Female Sockets	5	Free Hanging (In-Line)	M12	All
TE Connectivity Raychem Cable Protection TAA751A5501-060	A	Round	IP67 - Dust Tight Waterproof	5	Free Hanging (In-Line)	Wire Leads	M12	All	Receptacle	Standard	Male Pins	Violet			Polyurethane (PUR)	Shielded	Industrial Environments	19.69 ft	6 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 19.31
		10	$ 17.99
Newark	Each	1	$ 33.88
		5	$ 31.30
		10	$ 28.71
		25	$ 26.89
		50	$ 25.20
		100	$ 24.38
Sager	N/A	5	$ 23.98

Description

General part information

TAA75 Series

M12 Pigtail Cable Assembly, 5 Position, 1 m, Industrial Fieldbus, DeviceNet, A Code, M12 Socket End A, Shielded, Single Ended, PA66+25GF
