TAA75AA5501-080
ActiveTE Connectivity Raychem Cable Protection
SENSOR CABLES / ACTUATOR CABLES M12A5-MR-FS-PUR-8.0M
Deep-Dive with AI
Search across all available documentation for this part.
TAA75AA5501-080
ActiveTE Connectivity Raychem Cable Protection
SENSOR CABLES / ACTUATOR CABLES M12A5-MR-FS-PUR-8.0M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TAA75AA5501-080 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle, Right Angle |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 5 |
| 2nd Connector Number of Positions Loaded | All |
| 2nd Connector Shell Size - Insert | M12 |
| 2nd Connector Type | Plug |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Violet |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length | 26.2 ' |
| Length | 8 m |
| Shielding | Shielded |
| Usage | Industrial Environments |
TAA75 Series
| Part | 1st Connector Orientation | Cable Type | Ingress Protection | 1st Connector Number of Positions | 1st Connector Mounting Type | 2nd Connector Type | 1st Connector Shell Size - Insert | 1st Connector Number of Positions Loaded | 1st Connector Type | Assembly Configuration | 1st Connector Gender | Color | Length [x] | Length [x] | Cable Material | Shielding | Usage | Length | Length | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Mounting Type | 2nd Connector Shell Size - Insert | 2nd Connector Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | A | Round | IP67 - Dust Tight Waterproof | 5 | Free Hanging (In-Line) | Wire Leads | M12 | All | Receptacle | Standard | Male Pins | Gray | 1 m | 3.28 ft | Polyvinyl Chloride (PVC) | Shielded | Industrial Environments | |||||||
TE Connectivity Raychem Cable Protection | A | Round | IP67 - Dust Tight Waterproof | 5 | Free Hanging (In-Line) | Plug | M12 | All | Receptacle Right Angle | Standard | Male Pins | Gray | Polyvinyl Chloride (PVC) | Shielded | Industrial Environments | 19.69 ft | 6 m | Female Sockets | 5 | Free Hanging (In-Line) | M12 | All | ||
TE Connectivity Raychem Cable Protection | A | Round | IP67 - Dust Tight Waterproof | 5 | Free Hanging (In-Line) | Plug | M12 | All | Receptacle Right Angle | Standard | Male Pins | Violet | Polyurethane (PUR) | Shielded | Industrial Environments | 26.2 ' | 8 m | Female Sockets | 5 | Free Hanging (In-Line) | M12 | All | ||
TE Connectivity Raychem Cable Protection | A | Round | IP67 - Dust Tight Waterproof | 5 | Free Hanging (In-Line) | Wire Leads | M12 | All | Receptacle Right Angle | Standard | Male Pins | Violet | Polyurethane (PUR) | Shielded | Industrial Environments | 26.2 ' | 8 m | |||||||
TE Connectivity Raychem Cable Protection | A | Round | IP68 IP69K | 5 | Free Hanging (In-Line) | Plug | M12 | All | Receptacle | Standard | Male Pins | Gray | 500 mm | 1.64 ft | Polyvinyl Chloride (PVC) | Shielded | Industrial Environments | Female Sockets | 5 | Free Hanging (In-Line) | M12 | All | ||
TE Connectivity Raychem Cable Protection | A | Round | IP68 IP69K | 5 | Free Hanging (In-Line) | Plug | M12 | All | Receptacle | Standard | Male Pins | Violet | 1 m | 3.28 ft | Polyurethane (PUR) | Shielded | Industrial Environments | Female Sockets | 5 | Free Hanging (In-Line) | M12 | All | ||
TE Connectivity Raychem Cable Protection | A | Round | IP67 - Dust Tight Waterproof | 5 | Free Hanging (In-Line) | Wire Leads | M12 | All | Receptacle | Standard | Male Pins | Gray | 500 mm | 1.64 ft | Polyvinyl Chloride (PVC) | Shielded | Industrial Environments | |||||||
TE Connectivity Raychem Cable Protection | A | Round | 5 | Free Hanging (In-Line) | Wire Leads | M12 | All | Plug Right Angle | Standard | Female Sockets | Gray | 1 m | 3.28 ft | Polyvinyl Chloride (PVC) | Shielded | |||||||||
TE Connectivity Raychem Cable Protection | A | Round | IP67/IP68 - Dust Tight Waterproof NEMA 1 3 4 6 6P | 5 | Free Hanging (In-Line) | Plug | M12 | All | Receptacle Right Angle | Standard | Male Pins | Violet | 500 mm | 1.64 ft | Polyurethane (PUR) | Shielded | Cat5e Industrial Environments PoE+ | Female Sockets | 5 | Free Hanging (In-Line) | M12 | All | ||
TE Connectivity Raychem Cable Protection | A | Round | IP67 - Dust Tight Waterproof | 5 | Free Hanging (In-Line) | Wire Leads | M12 | All | Receptacle | Standard | Male Pins | Violet | Polyurethane (PUR) | Shielded | Industrial Environments | 19.69 ft | 6 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TAA75 Series

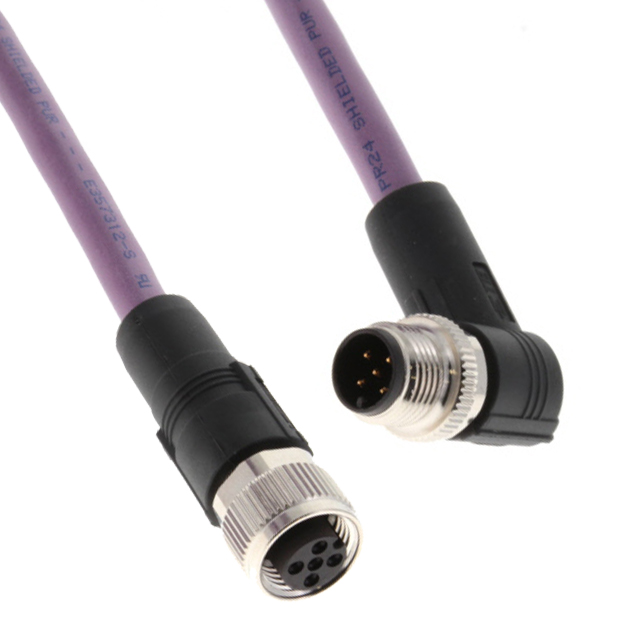

M12 Cable Assembly, 5 Position, 8 m, Industrial Fieldbus, DeviceNet, A Code, M12 Plug End A, M12 Socket End B, Shielded, Double Ended, PA66+25GF
