09300101301

Active

HARTING Technology Group

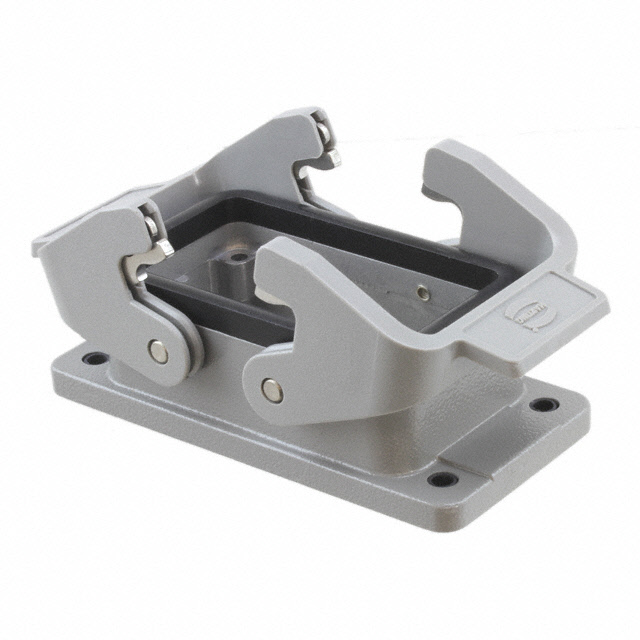

HAN 10B-BASE PNL 2 LEVERS IP 67

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09300101301

Active

HARTING Technology Group

HAN 10B-BASE PNL 2 LEVERS IP 67

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09300101301

Connector Type	Base - Panel Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Style	Bottom Entry

09300101 Series

Part	Housing Color	Ingress Protection	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Housing Finish	Thread Size	Connector Type	Style	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Size	Features	Lock Location	Gender	Frame Type	Material	Includes	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 09300101291	Gray	IP65 - Dust Tight Water Resistant	3.701 "	53.8 mm	2.118 "	52 mm	94 mm	2.047 "	Powder Coated	PG16	Base - Box Mount	Side Entry	Aluminum Die Cast	125 °C	-40 °C	10B	Feed Through	Locking Clip (1) on Base Bottom
HARTING Technology Group 09300101701																10B			Non-Gendered	Fixed Frame	Stainless Steel	1 Frame 4 Screws
HARTING Technology Group 09300101531	Gray	IP65 - Dust Tight Water Resistant	2.858 "	57 mm	2.244 "	43 mm	72.6 mm	1.693 in	Powder Coated	PG16	Hood	Side Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (2) on Hood
HARTING Technology Group 09300101305	Gray	IP65 IP67	3.858 "	30.2 mm	1.189 in	48.4 mm	98 mm	1.906 in	Powder Coated		Base - Panel Mount	Bottom Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (1) on Base Bottom
HARTING Technology Group 09300101421	Gray	IP65 - Dust Tight Water Resistant	2.858 "		2.303 "		72.6 mm	1.693 in	Powder Coated	PG16	Hood	Top Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (2) on Base Bottom					43 mm	58.5 mm
HARTING Technology Group 09300101301	Gray	IP65 - Dust Tight Water Resistant							Powder Coated		Base - Panel Mount	Bottom Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (2) on Base Bottom
HARTING Technology Group 09300101521	Gray	IP65 - Dust Tight Water Resistant	2.858 "	57 mm	2.244 "	43 mm	72.6 mm	1.693 in	Powder Coated	PG16	Hood	Side Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (2) on Base Bottom
HARTING Technology Group 09300101441	Gray	IP65 - Dust Tight Water Resistant	2.858 "		2.303 "		72.6 mm	1.693 in	Powder Coated	PG16	Hood	Top Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (1) on Base Bottom					43 mm	58.5 mm
HARTING Technology Group 09300101308	Gray	IP65 IP67	3.858 "	31.3 mm	1.232 in	48.4 mm	98 mm	1.906 in	Powder Coated		Base - Panel Mount	Bottom Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (1) on Base Bottom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.29
		10	$ 26.59
		25	$ 24.93
		50	$ 23.74
		100	$ 22.61
		250	$ 21.19

Description

General part information

09300101 Series

Base - Panel Mount Connector Bottom Entry 10B IP65 - Dust Tight, Water Resistant

Documents

Technical documentation and resources
