09300101291

Active

HARTING Technology Group

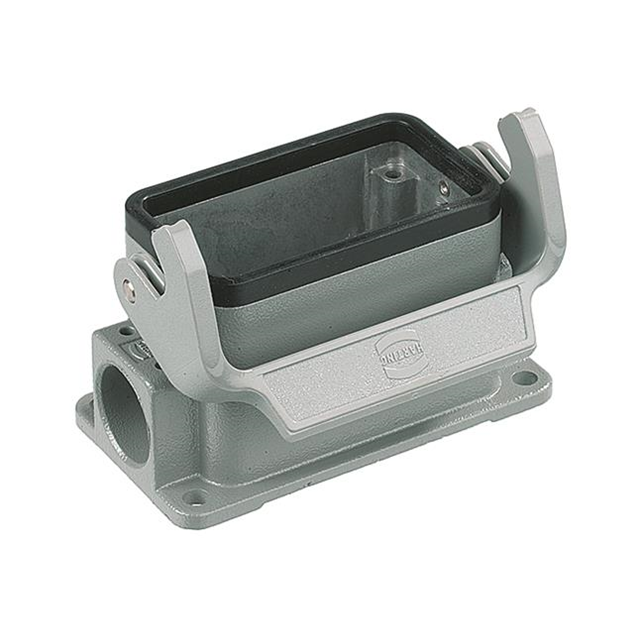

HAN B BASE SURFACE LC 1 LEVERS 2 ENTRIES ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09300101291

Active

HARTING Technology Group

HAN B BASE SURFACE LC 1 LEVERS 2 ENTRIES ROHS COMPLIANT: NA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09300101291

Connector Type	Base - Box Mount
Features	Feed Through
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	3.701 "
Size / Dimension [x]	94 mm
Size / Dimension [y]	52 mm
Size / Dimension [y]	2.047 "
Size / Dimension [z]	53.8 mm
Size / Dimension [z]	2.118 "
Style	Side Entry
Thread Size	PG16

09300101 Series

Part	Housing Color	Ingress Protection	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Housing Finish	Thread Size	Connector Type	Style	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Size	Features	Lock Location	Gender	Frame Type	Material	Includes	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 09300101291	Gray	IP65 - Dust Tight Water Resistant	3.701 "	53.8 mm	2.118 "	52 mm	94 mm	2.047 "	Powder Coated	PG16	Base - Box Mount	Side Entry	Aluminum Die Cast	125 °C	-40 °C	10B	Feed Through	Locking Clip (1) on Base Bottom
HARTING Technology Group 09300101701																10B			Non-Gendered	Fixed Frame	Stainless Steel	1 Frame 4 Screws
HARTING Technology Group 09300101531	Gray	IP65 - Dust Tight Water Resistant	2.858 "	57 mm	2.244 "	43 mm	72.6 mm	1.693 in	Powder Coated	PG16	Hood	Side Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (2) on Hood
HARTING Technology Group 09300101305	Gray	IP65 IP67	3.858 "	30.2 mm	1.189 in	48.4 mm	98 mm	1.906 in	Powder Coated		Base - Panel Mount	Bottom Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (1) on Base Bottom
HARTING Technology Group 09300101421	Gray	IP65 - Dust Tight Water Resistant	2.858 "		2.303 "		72.6 mm	1.693 in	Powder Coated	PG16	Hood	Top Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (2) on Base Bottom					43 mm	58.5 mm
HARTING Technology Group 09300101301	Gray	IP65 - Dust Tight Water Resistant							Powder Coated		Base - Panel Mount	Bottom Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (2) on Base Bottom
HARTING Technology Group 09300101521	Gray	IP65 - Dust Tight Water Resistant	2.858 "	57 mm	2.244 "	43 mm	72.6 mm	1.693 in	Powder Coated	PG16	Hood	Side Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (2) on Base Bottom
HARTING Technology Group 09300101441	Gray	IP65 - Dust Tight Water Resistant	2.858 "		2.303 "		72.6 mm	1.693 in	Powder Coated	PG16	Hood	Top Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (1) on Base Bottom					43 mm	58.5 mm
HARTING Technology Group 09300101308	Gray	IP65 IP67	3.858 "	31.3 mm	1.232 in	48.4 mm	98 mm	1.906 in	Powder Coated		Base - Panel Mount	Bottom Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (1) on Base Bottom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.87
		10	$ 21.76
Newark	Each	1	$ 37.12
		10	$ 33.66
		25	$ 32.31
		50	$ 30.20
		100	$ 29.04
		250	$ 27.50

Description

General part information

09300101 Series

Base - Box Mount Connector Side Entry PG16 10B IP65 - Dust Tight, Water Resistant
