09300101421

Active

HARTING Technology Group

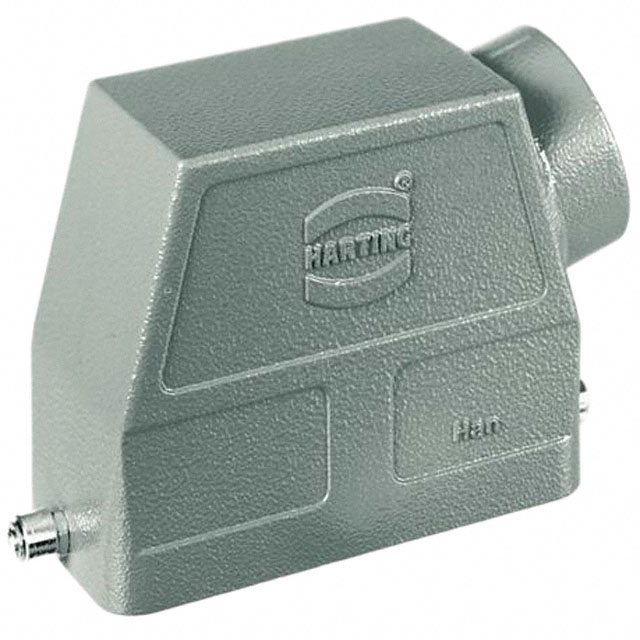

CONN HOOD TOP ENTRY SZ10B PG16

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09300101421

Active

HARTING Technology Group

CONN HOOD TOP ENTRY SZ10B PG16

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09300101421

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	2.858 "
Size / Dimension [x]	72.6 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.303 "
Size / Dimension [z]	58.5 mm
Style	Top Entry
Thread Size	PG16

09300101 Series

Part	Housing Color	Ingress Protection	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Housing Finish	Thread Size	Connector Type	Style	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Size	Features	Lock Location	Gender	Frame Type	Material	Includes	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 09300101291	Gray	IP65 - Dust Tight Water Resistant	3.701 "	53.8 mm	2.118 "	52 mm	94 mm	2.047 "	Powder Coated	PG16	Base - Box Mount	Side Entry	Aluminum Die Cast	125 °C	-40 °C	10B	Feed Through	Locking Clip (1) on Base Bottom
HARTING Technology Group 09300101701																10B			Non-Gendered	Fixed Frame	Stainless Steel	1 Frame 4 Screws
HARTING Technology Group 09300101531	Gray	IP65 - Dust Tight Water Resistant	2.858 "	57 mm	2.244 "	43 mm	72.6 mm	1.693 in	Powder Coated	PG16	Hood	Side Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (2) on Hood
HARTING Technology Group 09300101305	Gray	IP65 IP67	3.858 "	30.2 mm	1.189 in	48.4 mm	98 mm	1.906 in	Powder Coated		Base - Panel Mount	Bottom Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (1) on Base Bottom
HARTING Technology Group 09300101421	Gray	IP65 - Dust Tight Water Resistant	2.858 "		2.303 "		72.6 mm	1.693 in	Powder Coated	PG16	Hood	Top Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (2) on Base Bottom					43 mm	58.5 mm
HARTING Technology Group 09300101301	Gray	IP65 - Dust Tight Water Resistant							Powder Coated		Base - Panel Mount	Bottom Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (2) on Base Bottom
HARTING Technology Group 09300101521	Gray	IP65 - Dust Tight Water Resistant	2.858 "	57 mm	2.244 "	43 mm	72.6 mm	1.693 in	Powder Coated	PG16	Hood	Side Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (2) on Base Bottom
HARTING Technology Group 09300101441	Gray	IP65 - Dust Tight Water Resistant	2.858 "		2.303 "		72.6 mm	1.693 in	Powder Coated	PG16	Hood	Top Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (1) on Base Bottom					43 mm	58.5 mm
HARTING Technology Group 09300101308	Gray	IP65 IP67	3.858 "	31.3 mm	1.232 in	48.4 mm	98 mm	1.906 in	Powder Coated		Base - Panel Mount	Bottom Entry	Aluminum Die Cast	125 °C	-40 °C	10B		Locking Clip (1) on Base Bottom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.43
		10	$ 17.02
		25	$ 16.28
		50	$ 15.76
		100	$ 15.23
		250	$ 14.39
		500	$ 13.97

Description

General part information

09300101 Series

Hood Connector Top Entry PG16 10B IP65 - Dust Tight, Water Resistant
