ST-RJ45-PASS-R-FT

Active

SchmalzTech, LLC

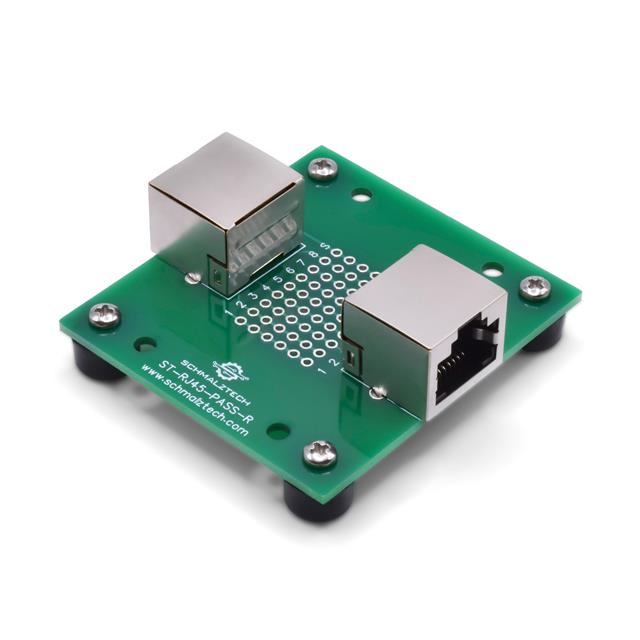

RJ45 PASS-THROUGH BREAKOUT BOARD

Search across all available documentation for this part.

Active

SchmalzTech, LLC

RJ45 PASS-THROUGH BREAKOUT BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	ST-RJ45-PASS-R-FT

Board Thickness	1.6 mm
Board Thickness	0.063 in
Material	FR4 Epoxy Glass
Number of Positions	9
Package Accepted	RJ45
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Proto Board Type	Connector to Plated Through Hole
Size / Dimension [x]	2.2 in
Size / Dimension [x]	55.88 mm
Size / Dimension [y]	2 "
Size / Dimension [y]	50.8 mm

Part	Proto Board Type	Number of Positions	Package Accepted	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Pitch [x]	Pitch [x]	Material	Board Thickness	Board Thickness	Size / Dimension [x]	Size / Dimension [y]
SchmalzTech, LLC ST-RJ45-S-E-CHS	Connector to Terminal Block	9	RJ45	2.33 in	1.89 in	48.01 mm	59.18 mm	2.54 mm	0.1 in
SchmalzTech, LLC ST-RJ45-PASS-R-FT	Connector to Plated Through Hole	9	RJ45			50.8 mm	55.88 mm	2.54 mm	0.1 in	FR4 Epoxy Glass	1.6 mm	0.063 in	2.2 in	2 "
SchmalzTech, LLC ST-RJ45-R-DIN	Connector to Terminal Block	8	RJ45	2.2 in	1.8 in	45.72 mm	55.88 mm	2.54 mm	0.1 in	FR4 Epoxy Glass	1.6 mm	0.063 in
