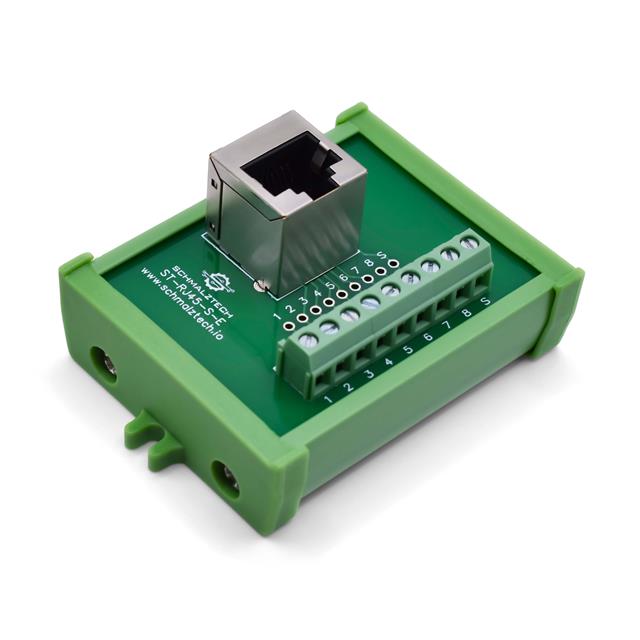

RJ45 ENCLOSED BREAKOUT BOARD

Search across all available documentation for this part.

Active

SchmalzTech, LLC

RJ45 ENCLOSED BREAKOUT BOARD

Technical Specifications

Parameters and characteristics for this part

Part	Proto Board Type	Number of Positions	Package Accepted	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Pitch [x]	Pitch [x]	Material	Board Thickness	Board Thickness	Size / Dimension [x]	Size / Dimension [y]
SchmalzTech, LLC ST-RJ45-S-E-CHS	Connector to Terminal Block	9	RJ45	2.33 in	1.89 in	48.01 mm	59.18 mm	2.54 mm	0.1 in
SchmalzTech, LLC ST-RJ45-PASS-R-FT	Connector to Plated Through Hole	9	RJ45			50.8 mm	55.88 mm	2.54 mm	0.1 in	FR4 Epoxy Glass	1.6 mm	0.063 in	2.2 in	2 "
SchmalzTech, LLC ST-RJ45-R-DIN	Connector to Terminal Block	8	RJ45	2.2 in	1.8 in	45.72 mm	55.88 mm	2.54 mm	0.1 in	FR4 Epoxy Glass	1.6 mm	0.063 in
