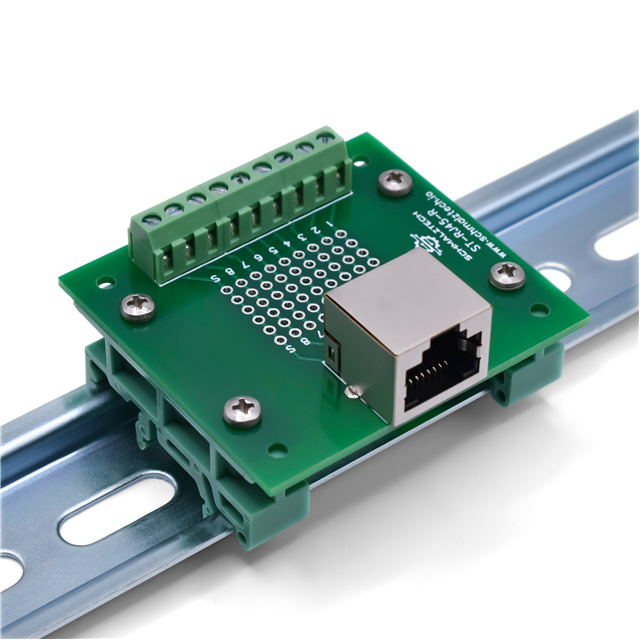

ST-RJ45-R-DIN
ActiveSchmalzTech, LLC
RJ45 BREAKOUT BOARD W/ DIN CLIPS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST-RJ45-R-DIN |
|---|---|
| Board Thickness | 1.6 mm |
| Board Thickness | 0.063 in |
| Material | FR4 Epoxy Glass |
| Number of Positions | 8 |
| Package Accepted | RJ45 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Proto Board Type | Connector to Terminal Block |
| Size / Dimension [x] | 55.88 mm |
| Size / Dimension [x] | 2.2 in |
| Size / Dimension [y] | 45.72 mm |
| Size / Dimension [y] | 1.8 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.99 | |
| 20 | $ 14.99 | |||
| 50 | $ 16.49 | |||
| 100 | $ 15.99 | |||
Description
General part information
ST-RJ45 Series
RJ45 BREAKOUT BOARD W/ DIN CLIPS
