B14B-PHDSS

Active

JST Sales America Inc.

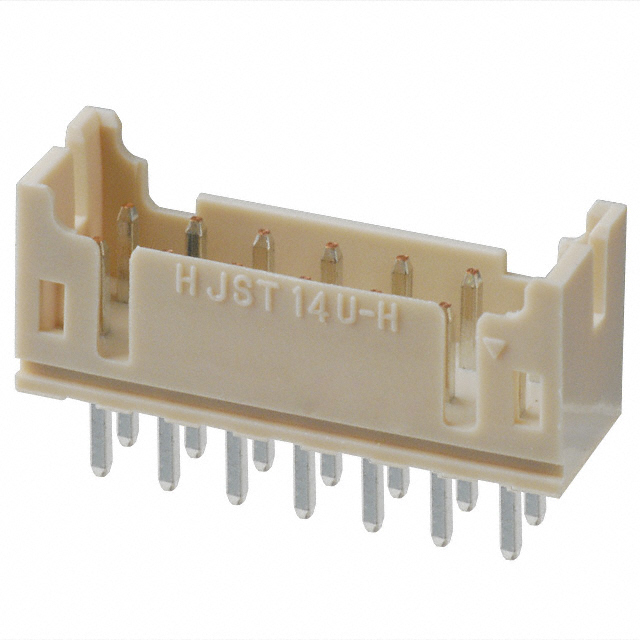

CONN HEADER VERT 14POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart JST Prefix Suffix Chart +1

B14B-PHDSS

Active

JST Sales America Inc.

CONN HEADER VERT 14POS 2MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart JST Prefix Suffix Chart +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B14B-PHDSS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.114 in
Contact Length - Mating	2.9 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	6.5 mm
Insulation Height	0.256 in
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mated Stacking Heights	8.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.291 in
Overall Contact Length	7.4 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

B14B-PH Series

Part	Number of Rows	Connector Type	Mated Stacking Heights	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Style	Contact Shape	Mounting Type	Contact Type	Fastening Type	Number of Positions Loaded	Termination	Contact Finish - Post	Features	Number of Positions	Material Flammability Rating	Insulation Material	Insulation Color	Contact Material	Current Rating (Amps)	Shrouding	Voltage Rating	Overall Contact Length [x]	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating	Row Spacing - Mating	Overall Contact Length	Contact Length - Post	Contact Length - Post
JST Sales America Inc. B14B-PH-SM4-TBT	1	Header	8.6 mm	0.13 in	3.3 mm	-25 °C	85 °C	0.079 in	2 mm	0.26 in	6.6 mm	Board to Cable/Wire	Square	Surface Mount	Male Pin	Detent Lock	All	Solder	Tin	Pick and Place Solder Retention	14	UL94 V-0	Nylon 6T Polyamide (PA6T)	Natural	Copper Alloy	2 A	Shrouded - 4 Wall	100 V
JST Sales America Inc. B14B-PH-K-S	1	Header	8 mm	0.13 in	3.3 mm	-25 °C	85 °C	0.079 in	2 mm	0.236 in	6 mm	Board to Cable/Wire	Square	Through Hole	Male Pin	Detent Lock	All	Press-Fit Solder	Tin		14	UL94 V-0	Polyamide (PA66) Nylon 6/6	Natural	Brass	2 A	Shrouded - 4 Wall	100 V	0.333 in	8.45 mm	0.134 in	3.4 mm
JST Sales America Inc. B14B-PHDSS	2	Header	8.8 mm	0.114 in	2.9 mm	-25 °C	85 °C	0.079 in	2 mm	0.256 in	6.5 mm	Board to Cable/Wire	Square	Through Hole	Male Pin	Detent Lock	All	Solder	Tin		14	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Natural	Copper Alloy	3 A	Shrouded - 4 Wall	250 VDC		7.4 mm			0.079 in	2 mm	0.291 in	0.118 in	3 mm
JST Sales America Inc. B14B-PH-SM4-TB	1	Header	8.6 mm	0.13 in	3.3 mm	-25 °C	85 °C	0.079 in	2 mm	0.26 in	6.6 mm	Board to Cable/Wire	Square	Surface Mount	Male Pin	Detent Lock	All	Solder	Tin	Solder Retention	14	UL94 V-0	Nylon 6T Polyamide (PA6T)	Natural	Copper Alloy	2 A	Shrouded - 4 Wall	100 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.47
		10	$ 0.40
		100	$ 0.34
		500	$ 0.30
		1000	$ 0.29
		5000	$ 0.26
		10000	$ 0.25

Description

General part information

B14B-PH Series

Connector Header Through Hole 14 position 0.079" (2.00mm)
