B14B-PH-K-S

Active

JST Sales America Inc.

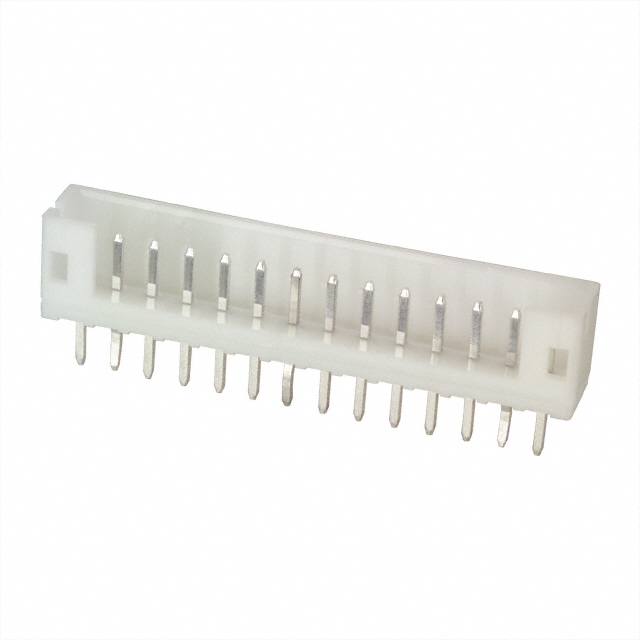

CONN HEADER VERT 14POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet JST Prefix Suffix Chart

B14B-PH-K-S

Active

JST Sales America Inc.

CONN HEADER VERT 14POS 2MM

Deep-Dive with AI

DocumentsDatasheet JST Prefix Suffix Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B14B-PH-K-S

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.13 in
Contact Length - Mating	3.3 mm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	6 mm
Insulation Height	0.236 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Heights	8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	8.45 mm
Overall Contact Length [x]	0.333 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	100 V

B14B-PH Series

Part	Number of Rows	Connector Type	Mated Stacking Heights	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Style	Contact Shape	Mounting Type	Contact Type	Fastening Type	Number of Positions Loaded	Termination	Contact Finish - Post	Features	Number of Positions	Material Flammability Rating	Insulation Material	Insulation Color	Contact Material	Current Rating (Amps)	Shrouding	Voltage Rating	Overall Contact Length [x]	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating	Row Spacing - Mating	Overall Contact Length	Contact Length - Post	Contact Length - Post
JST Sales America Inc. B14B-PH-SM4-TBT	1	Header	8.6 mm	0.13 in	3.3 mm	-25 °C	85 °C	0.079 in	2 mm	0.26 in	6.6 mm	Board to Cable/Wire	Square	Surface Mount	Male Pin	Detent Lock	All	Solder	Tin	Pick and Place Solder Retention	14	UL94 V-0	Nylon 6T Polyamide (PA6T)	Natural	Copper Alloy	2 A	Shrouded - 4 Wall	100 V
JST Sales America Inc. B14B-PH-K-S	1	Header	8 mm	0.13 in	3.3 mm	-25 °C	85 °C	0.079 in	2 mm	0.236 in	6 mm	Board to Cable/Wire	Square	Through Hole	Male Pin	Detent Lock	All	Press-Fit Solder	Tin		14	UL94 V-0	Polyamide (PA66) Nylon 6/6	Natural	Brass	2 A	Shrouded - 4 Wall	100 V	0.333 in	8.45 mm	0.134 in	3.4 mm
JST Sales America Inc. B14B-PHDSS	2	Header	8.8 mm	0.114 in	2.9 mm	-25 °C	85 °C	0.079 in	2 mm	0.256 in	6.5 mm	Board to Cable/Wire	Square	Through Hole	Male Pin	Detent Lock	All	Solder	Tin		14	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Natural	Copper Alloy	3 A	Shrouded - 4 Wall	250 VDC		7.4 mm			0.079 in	2 mm	0.291 in	0.118 in	3 mm
JST Sales America Inc. B14B-PH-SM4-TB	1	Header	8.6 mm	0.13 in	3.3 mm	-25 °C	85 °C	0.079 in	2 mm	0.26 in	6.6 mm	Board to Cable/Wire	Square	Surface Mount	Male Pin	Detent Lock	All	Solder	Tin	Solder Retention	14	UL94 V-0	Nylon 6T Polyamide (PA6T)	Natural	Copper Alloy	2 A	Shrouded - 4 Wall	100 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.69
		10	$ 0.60
		250	$ 0.45
		500	$ 0.43
		1000	$ 0.35
		5000	$ 0.31
		10000	$ 0.29

Description

General part information

B14B-PH Series

Connector Header Through Hole 14 position 0.079" (2.00mm)
