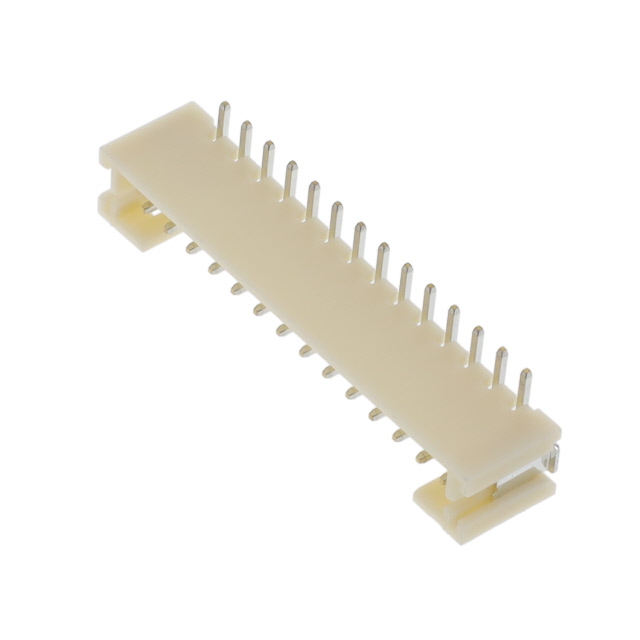

B14B-PH-SM4-TBT
ActiveJST Sales America Inc.
CONN HEADER SMD 14POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
B14B-PH-SM4-TBT
ActiveJST Sales America Inc.
CONN HEADER SMD 14POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B14B-PH-SM4-TBT |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.13 in |
| Contact Length - Mating | 3.3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2 A |
| Fastening Type | Detent Lock |
| Features | Pick and Place, Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.26 in |
| Insulation Height | 6.6 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mated Stacking Heights | 8.6 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 100 V |
B14B-PH Series
| Part | Number of Rows | Connector Type | Mated Stacking Heights | Contact Length - Mating | Contact Length - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating [x] | Pitch - Mating [x] | Insulation Height | Insulation Height | Style | Contact Shape | Mounting Type | Contact Type | Fastening Type | Number of Positions Loaded | Termination | Contact Finish - Post | Features | Number of Positions | Material Flammability Rating | Insulation Material | Insulation Color | Contact Material | Current Rating (Amps) | Shrouding | Voltage Rating | Overall Contact Length [x] | Overall Contact Length | Contact Length - Post [x] | Contact Length - Post [x] | Row Spacing - Mating | Row Spacing - Mating | Overall Contact Length | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | 1 | Header | 8.6 mm | 0.13 in | 3.3 mm | -25 °C | 85 °C | 0.079 in | 2 mm | 0.26 in | 6.6 mm | Board to Cable/Wire | Square | Surface Mount | Male Pin | Detent Lock | All | Solder | Tin | Pick and Place Solder Retention | 14 | UL94 V-0 | Nylon 6T Polyamide (PA6T) | Natural | Copper Alloy | 2 A | Shrouded - 4 Wall | 100 V | |||||||||
JST Sales America Inc. | 1 | Header | 8 mm | 0.13 in | 3.3 mm | -25 °C | 85 °C | 0.079 in | 2 mm | 0.236 in | 6 mm | Board to Cable/Wire | Square | Through Hole | Male Pin | Detent Lock | All | Press-Fit Solder | Tin | 14 | UL94 V-0 | Polyamide (PA66) Nylon 6/6 | Natural | Brass | 2 A | Shrouded - 4 Wall | 100 V | 0.333 in | 8.45 mm | 0.134 in | 3.4 mm | ||||||
JST Sales America Inc. | 2 | Header | 8.8 mm | 0.114 in | 2.9 mm | -25 °C | 85 °C | 0.079 in | 2 mm | 0.256 in | 6.5 mm | Board to Cable/Wire | Square | Through Hole | Male Pin | Detent Lock | All | Solder | Tin | 14 | UL94 V-0 | Glass Filled Nylon Polyamide (PA) | Natural | Copper Alloy | 3 A | Shrouded - 4 Wall | 250 VDC | 7.4 mm | 0.079 in | 2 mm | 0.291 in | 0.118 in | 3 mm | ||||
JST Sales America Inc. | 1 | Header | 8.6 mm | 0.13 in | 3.3 mm | -25 °C | 85 °C | 0.079 in | 2 mm | 0.26 in | 6.6 mm | Board to Cable/Wire | Square | Surface Mount | Male Pin | Detent Lock | All | Solder | Tin | Solder Retention | 14 | UL94 V-0 | Nylon 6T Polyamide (PA6T) | Natural | Copper Alloy | 2 A | Shrouded - 4 Wall | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.59 | |
| 10 | $ 1.38 | |||
| 100 | $ 1.23 | |||
| 500 | $ 1.03 | |||
| Digi-Reel® | 1 | $ 1.59 | ||
| 10 | $ 1.38 | |||
| 100 | $ 1.23 | |||
| 500 | $ 1.03 | |||
| Tape & Reel (TR) | 1000 | $ 0.88 | ||
| 2000 | $ 0.85 | |||
| 3000 | $ 0.82 | |||
| 5000 | $ 0.78 | |||
| 10000 | $ 0.76 | |||
Description
General part information
B14B-PH Series
Connector Header Surface Mount 14 position 0.079" (2.00mm)
