172-009-183L021

Active

MH Connectors

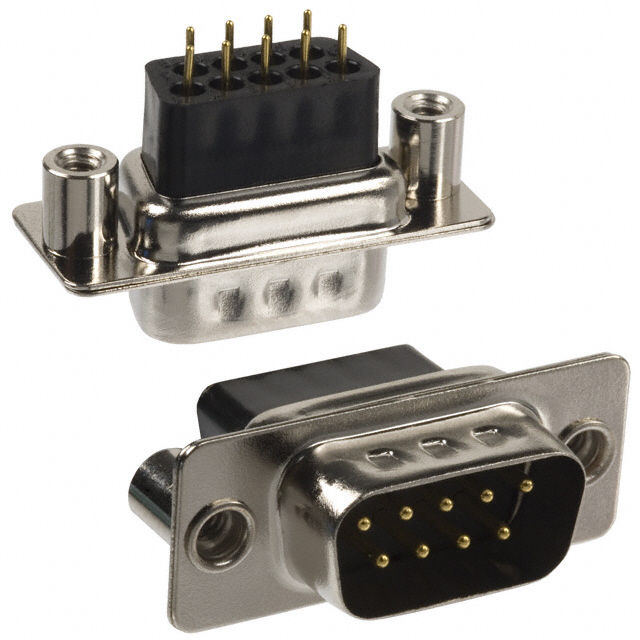

D SUB CONNECTOR, DB9, PLUG, 172 M SERIES, 9 CONTACTS, DE, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Miscellaneous EN +3

172-009-183L021

Active

MH Connectors

D SUB CONNECTOR, DB9, PLUG, 172 M SERIES, 9 CONTACTS, DE, THROUGH HOLE

Deep-Dive with AI

DocumentsDrawing EN Miscellaneous EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172-009-183L021

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

172-009 Series

Part	Flange Feature	Number of Rows	Contact Type	Material Flammability Rating	Contact Finish Thickness	Termination	Number of Positions	Mounting Type	Contact Finish	Connector Style	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Current Rating (Amps)	Features	Color	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]
MH Connectors 172-009-181L001	Housing/Shell (Unthreaded)	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT)	-50 °C	125 °C	Steel Yellow Chromate Plated	5 A
MH Connectors 172-009-102R001	Housing/Shell (Unthreaded)	2	Signal	UL94 V-0	Flash		9		Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT)				5 A	Grounding Indents	Beige	Brass	20 AWG	26 AWG
MH Connectors 172-009-112R021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT) Polyester				5 A	Grounding Indents	Beige	Brass
MH Connectors 172-009-182-021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT)				5 A	Grounding Indents
MH Connectors 172-009-242R021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Wire Wrap	9	Panel Mount Through Hole	Gold	D-Sub	Receptacle Female Sockets	DE E	1	Polybutylene Terephthalate (PBT) Polyester				5 A		Beige	Brass
MH Connectors 172-009-182-001	Housing/Shell (Unthreaded)	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT)				5 A	Grounding Indents
MH Connectors 172-009-142R021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Wire Wrap	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT) Polyester				5 A	Grounding Indents	Beige	Brass
MH Connectors 172-009-183L021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT)	-50 °C	125 °C	Nickel Plated Steel	5 A	Grounding Indents
MH Connectors 172-009-283L021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Receptacle Female Sockets	DE E	1	Polybutylene Terephthalate (PBT)	-50 °C	125 °C	Nickel Plated Steel	5 A		Black	Brass
MH Connectors 172-009-142R031	4-40	2	Signal	UL94 V-0	Flash	Wire Wrap	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT) Polyester				5 A	Grounding Indents	Beige	Brass
