172-009-242R021

Obsolete

MH Connectors

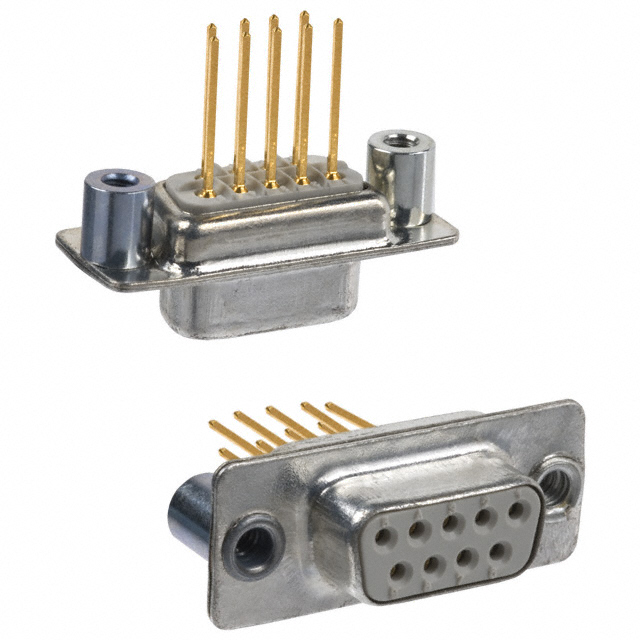

CONN D-SUB RCPT 9POS PNL MNT WW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

172-009-242R021

Obsolete

MH Connectors

CONN D-SUB RCPT 9POS PNL MNT WW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172-009-242R021

Color	Beige
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Wire Wrap

172-009 Series

Part	Flange Feature	Number of Rows	Contact Type	Material Flammability Rating	Contact Finish Thickness	Termination	Number of Positions	Mounting Type	Contact Finish	Connector Style	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Current Rating (Amps)	Features	Color	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]
MH Connectors 172-009-181L001	Housing/Shell (Unthreaded)	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT)	-50 °C	125 °C	Steel Yellow Chromate Plated	5 A
MH Connectors 172-009-102R001	Housing/Shell (Unthreaded)	2	Signal	UL94 V-0	Flash		9		Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT)				5 A	Grounding Indents	Beige	Brass	20 AWG	26 AWG
MH Connectors 172-009-112R021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT) Polyester				5 A	Grounding Indents	Beige	Brass
MH Connectors 172-009-182-021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT)				5 A	Grounding Indents
MH Connectors 172-009-242R021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Wire Wrap	9	Panel Mount Through Hole	Gold	D-Sub	Receptacle Female Sockets	DE E	1	Polybutylene Terephthalate (PBT) Polyester				5 A		Beige	Brass
MH Connectors 172-009-182-001	Housing/Shell (Unthreaded)	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT)				5 A	Grounding Indents
MH Connectors 172-009-142R021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Wire Wrap	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT) Polyester				5 A	Grounding Indents	Beige	Brass
MH Connectors 172-009-183L021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT)	-50 °C	125 °C	Nickel Plated Steel	5 A	Grounding Indents
MH Connectors 172-009-283L021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Receptacle Female Sockets	DE E	1	Polybutylene Terephthalate (PBT)	-50 °C	125 °C	Nickel Plated Steel	5 A		Black	Brass
MH Connectors 172-009-142R031	4-40	2	Signal	UL94 V-0	Flash	Wire Wrap	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT) Polyester				5 A	Grounding Indents	Beige	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.39
		10	$ 5.66
		25	$ 5.11
		40	$ 4.85
		80	$ 4.50
		230	$ 4.03
		440	$ 3.77

Description

General part information

172-009 Series

9 Position D-Sub Receptacle, Female Sockets Connector
