172-009-181L001

Obsolete

MH Connectors

CONN D-SUB PLG 9POS PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

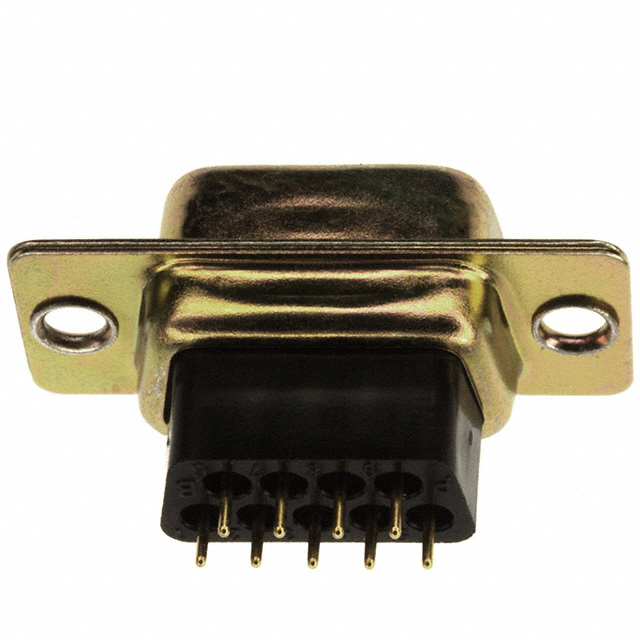

172-009-181L001

Obsolete

MH Connectors

CONN D-SUB PLG 9POS PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172-009-181L001

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Shell Material, Finish	Steel, Yellow Chromate Plated
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

172-009 Series

Part	Flange Feature	Number of Rows	Contact Type	Material Flammability Rating	Contact Finish Thickness	Termination	Number of Positions	Mounting Type	Contact Finish	Connector Style	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Current Rating (Amps)	Features	Color	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]
MH Connectors 172-009-181L001	Housing/Shell (Unthreaded)	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT)	-50 °C	125 °C	Steel Yellow Chromate Plated	5 A
MH Connectors 172-009-102R001	Housing/Shell (Unthreaded)	2	Signal	UL94 V-0	Flash		9		Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT)				5 A	Grounding Indents	Beige	Brass	20 AWG	26 AWG
MH Connectors 172-009-112R021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT) Polyester				5 A	Grounding Indents	Beige	Brass
MH Connectors 172-009-182-021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT)				5 A	Grounding Indents
MH Connectors 172-009-242R021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Wire Wrap	9	Panel Mount Through Hole	Gold	D-Sub	Receptacle Female Sockets	DE E	1	Polybutylene Terephthalate (PBT) Polyester				5 A		Beige	Brass
MH Connectors 172-009-182-001	Housing/Shell (Unthreaded)	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT)				5 A	Grounding Indents
MH Connectors 172-009-142R021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Wire Wrap	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT) Polyester				5 A	Grounding Indents	Beige	Brass
MH Connectors 172-009-183L021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT)	-50 °C	125 °C	Nickel Plated Steel	5 A	Grounding Indents
MH Connectors 172-009-283L021	4-40 Board Side	2	Signal	UL94 V-0	Flash	Solder	9	Panel Mount Through Hole	Gold	D-Sub	Receptacle Female Sockets	DE E	1	Polybutylene Terephthalate (PBT)	-50 °C	125 °C	Nickel Plated Steel	5 A		Black	Brass
MH Connectors 172-009-142R031	4-40	2	Signal	UL94 V-0	Flash	Wire Wrap	9	Panel Mount Through Hole	Gold	D-Sub	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT) Polyester				5 A	Grounding Indents	Beige	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

172-009 Series

9 Position D-Sub Plug, Male Pins Connector
