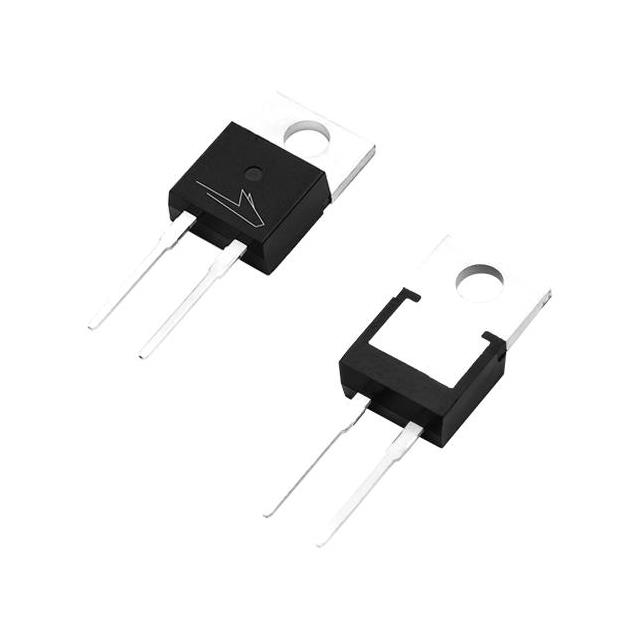

C3D06065I

Active

Wolfspeed

DIODE SCHOTTKY SIC 650V 13A 2-PIN(2+TAB) TO-220 ISOLATED TUBE

Search across all available documentation for this part.

Active

Wolfspeed

DIODE SCHOTTKY SIC 650V 13A 2-PIN(2+TAB) TO-220 ISOLATED TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	C3D06065I

Current - Average Rectified (Io)	13 A
Current - Reverse Leakage @ Vr	50 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-220-2 Isolated Tab
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	TO-220-2 Isolated Tab
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Technology	Package / Case	Current - Reverse Leakage @ Vr	Speed	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Current - Average Rectified (Io)	Capacitance @ Vr, F
Wolfspeed C3D06065E	650 V	1.7 V	SiC (Silicon Carbide) Schottky	DPAK (2 Leads + Tab) SC-63 TO-252-3	50 µA	No Recovery Time	Surface Mount	175 ░C	-55 C	TO-252-2
Wolfspeed C3D06065A	650 V	1.8 V	SiC (Silicon Carbide) Schottky	TO-220-2	60 µA	No Recovery Time	Through Hole	175 ░C	-55 C	TO-220-2	19 A	294 pF
Wolfspeed C3D06065I	650 V	1.7 V	SiC (Silicon Carbide) Schottky	TO-220-2 Isolated Tab	50 µA	No Recovery Time	Through Hole	175 ░C	-55 C	TO-220-2 Isolated Tab	13 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 650 V 13A Through Hole TO-220-2 Isolated Tab
