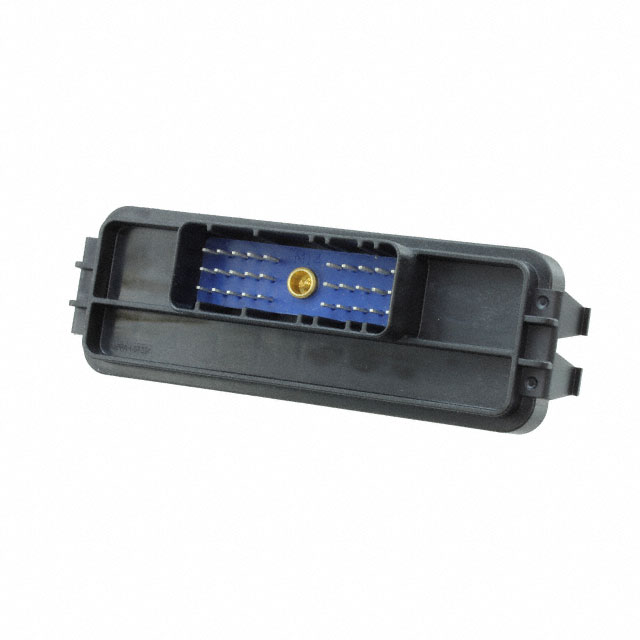

5810130072
ActiveCinch Connectivity Solutions Trompeter
RECTANGULAR CONNECTOR, 30 POS, RIGHT ANGLE, THROUGH HOLE
Deep-Dive with AI
Search across all available documentation for this part.
5810130072
ActiveCinch Connectivity Solutions Trompeter
RECTANGULAR CONNECTOR, 30 POS, RIGHT ANGLE, THROUGH HOLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5810130072 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 3.2 mm |
| Contact Length - Post [x] | 0.126 in |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 10 A |
| Features | Ferrite Filter |
| Ingress Protection | IP69K, IP67 |
| Insulation Color | Black |
| Insulation Material | Polymer, Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.09 | |
| 10 | $ 17.59 | |||
| 25 | $ 16.83 | |||
| 72 | $ 16.29 | |||
| 144 | $ 15.74 | |||
| 288 | $ 14.87 | |||
| 504 | $ 14.44 | |||
Description
General part information
58101 Series
Connector Header Through Hole, Right Angle 30 position
