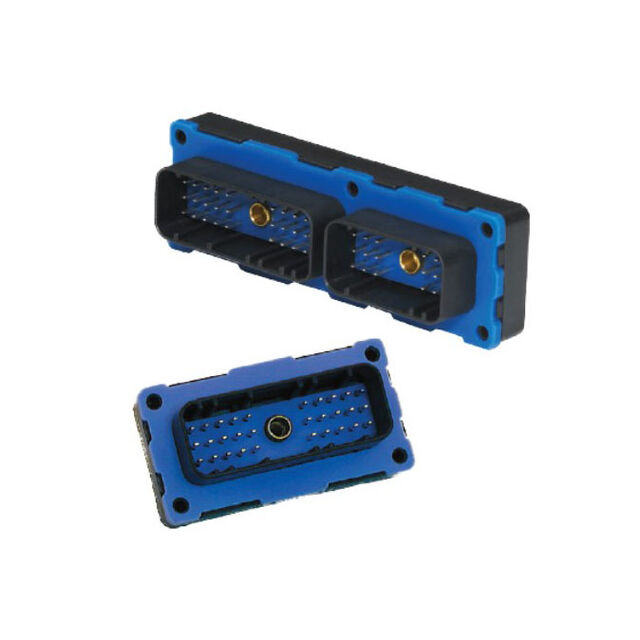

5810118011

Active

Cinch Connectivity Solutions Trompeter

CONN RECTANGULAR M 18 POS 3.96MM SOLDER RA THRU-HOLE

Deep-Dive with AI

Search across all available documentation for this part.

5810118011

Active

Cinch Connectivity Solutions Trompeter

CONN RECTANGULAR M 18 POS 3.96MM SOLDER RA THRU-HOLE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5810118011

Applications	Automotive
Connector Type	Header
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Length - Post	4.22 mm
Contact Length - Post	0.166 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	10 A
Ingress Protection	IP69K, IP67
Insulation Color	Black
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

58101 Series

Part	Contact Type	Mounting Type	Color	Number of Positions	Note	Features	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Rows	Contact Length - Post	Contact Length - Post [x]	Insulation Material	Style	Contact Finish - Post	Contact Material	Termination	Contact Shape	Ingress Protection	Current Rating (Amps)	Shrouding	Insulation Color	Number of Positions Loaded	Applications	Contact Finish - Mating	Contact Length - Post	Fastening Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating
Cinch Connectivity Solutions Trompeter 5810130029	Female Socket	Free Hanging (In-Line)	Black	30	Contacts Not Included	IP67/IP69K	Crimp	85 °C	-40 °C	Receptacle	3
Cinch Connectivity Solutions Trompeter 5810118033	Male Pin	Through Hole Right Angle		18		Ferrite Filter		85 °C	-40 °C	Header	3	3.2 mm	0.126 in	Polymer Glass Filled	Board to Cable/Wire	Tin	Brass	Solder	Circular	IP67 IP69K	10 A	Shrouded - 4 Wall	Black	All	Automotive
Cinch Connectivity Solutions Trompeter 5810118011	Male Pin	Through Hole Right Angle		18				125 °C	-40 °C	Header	3	4.22 mm		Glass Filled Polybutylene Terephthalate (PBT) Polyester	Board to Cable/Wire	Tin-Lead	Brass	Solder	Square	IP67 IP69K	10 A	Shrouded - 4 Wall	Black	All	Automotive	Tin-Lead	0.166 in
Cinch Connectivity Solutions Trompeter 5810124011	Male Pin	Panel Mount Right Angle Through Hole		24				85 °C	-40 °C	Header	2	3.3 mm		Polymer Glass Filled	Board to Cable/Wire	Tin	Brass	Solder	Square	IP67 IP69K	10 A	Shrouded - 4 Wall	Black	All	Automotive		0.13 in	Latch Lock	40.9 mm	1.61 in	0.138 in	3.5 mm
Cinch Connectivity Solutions Trompeter 5810130064	Male Pin	Through Hole Right Angle		30				85 °C	-40 °C	Header	3	3.2 mm	0.126 in	Polymer Glass Filled	Board to Cable/Wire	Tin	Brass	Solder	Circular	IP67 IP69K	10 A	Shrouded - 4 Wall	Black	All	Automotive
Cinch Connectivity Solutions Trompeter 5810130028	Female Socket	Free Hanging (In-Line)	Black	30	Contacts Not Included	IP67/IP69K	Crimp	85 °C	-40 °C	Receptacle	3
Cinch Connectivity Solutions Trompeter 5810130072	Male Pin	Through Hole Right Angle		30		Ferrite Filter		85 °C	-40 °C	Header	3	3.2 mm	0.126 in	Polymer Glass Filled	Board to Cable/Wire	Tin	Brass	Solder	Circular	IP67 IP69K	10 A	Shrouded - 4 Wall	Black	All	Automotive
Cinch Connectivity Solutions Trompeter 5810160005	Male Pin	Through Hole Right Angle		60				85 °C	-40 °C	Header	3	3.2 mm	0.126 in	Polymer Glass Filled	Board to Cable/Wire	Tin	Brass	Solder	Circular	IP67 IP69K	10 A	Shrouded - 4 Wall	Black	All	Automotive
Cinch Connectivity Solutions Trompeter 5810148010	Male Pin	Through Hole Right Angle		48		Ferrite Filter		85 °C	-40 °C	Header	3	3.2 mm	0.126 in	Polymer Glass Filled	Board to Cable/Wire	Tin	Brass	Solder	Circular	IP67 IP69K	10 A	Shrouded - 4 Wall	Black	All	Automotive
Cinch Connectivity Solutions Trompeter 5810118036	Male Pin	Through Hole Right Angle		18				85 °C	-40 °C	Header	3	3.2 mm	0.126 in	Polymer Glass Filled	Board to Cable/Wire	Tin	Brass	Solder	Circular	IP67 IP69K	10 A	Shrouded - 4 Wall	Black	All	Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 16.61
		10	$ 16.42
		25	$ 16.20
		50	$ 15.99
Digikey	Bulk	1	$ 17.56
		10	$ 15.22
		120	$ 12.54
		600	$ 11.46

Description

General part information

58101 Series

Connector Header Through Hole, Right Angle 18 position
